Lesson Overview
Virtual Routing and Forwarding (VRF) is a network virtualization technology that allows a single physical router or Layer 3 switch to maintain multiple independent routing and forwarding tables.
VRF enables organizations to logically separate network traffic, support overlapping IP address spaces, and provide routing isolation without deploying dedicated physical routers for each network.
This lesson covers VRF fundamentals, VRF-Lite, routing table isolation, interface assignments, inter-VRF communication, and route leaking. Learners will also explore practical Cisco VRF configurations, verification commands, and troubleshooting techniques used in enterprise campus, data center, and service provider networks.
VRF-Lite separates routing domains across a shared enterprise infrastructure.
Learning Objectives
- Explain Virtual Routing and Forwarding (VRF) and how it creates multiple logical routing instances on one physical device.
- Distinguish the global routing table from per-VRF routing tables and understand interface-to-VRF membership.
- Identify enterprise VRF use cases such as tenant isolation, management separation, overlapping address space, shared services, and segmented WAN designs.
- Configure VRF-Lite with modern IOS XE vrf definition syntax, routed ports, SVIs, and 802.1Q subinterfaces.
- Configure VRF-aware static routing and understand how dynamic routing protocols operate per VRF.
- Use show vrf, show ip route vrf, show ip protocols vrf, ping vrf, traceroute vrf, and CEF commands to verify operation.
- Troubleshoot missing routes, incorrect interface membership, next-hop failures, routing protocol mismatches, ACL/policy issues, and return-path problems.
|
Module outcome: After this lesson, learners should be able to explain VRF operation, build VRF-Lite, assign interfaces, install and verify routes, interpret show-command output, and troubleshoot common isolation and reachability failures. |
1. What Is Virtual Routing and Forwarding (VRF)?
Virtual Routing and Forwarding (VRF) allows a single physical router or multilayer switch to maintain multiple independent Layer 3 routing instances. Each instance has its own routing table (RIB), forwarding table (FIB), interfaces, next-hop resolution, and routing protocol context.
A useful mental model is to imagine one physical chassis acting like several logical routers. An interface belongs either to the global routing table or to a specific VRF. A packet entering an interface is looked up in the routing table associated with that interface.
Figure 1 - One device, multiple isolated routing tables.
1.1 Global Routing Table vs VRF Routing Tables
In traditional IP networking, a router uses a Global Routing Table (GRT) to determine how packets should reach their destinations.
All Layer 3 interfaces assigned to the global routing environment share the same routing table. Routes can be installed through directly connected networks, static routes, or dynamic routing protocols such as OSPF, EIGRP, and BGP.
However, modern enterprise networks often require multiple departments, customers, applications, or services to operate independently on the same physical network infrastructure.
This is where Virtual Routing and Forwarding (VRF) becomes important.
VRF allows a single physical router or Layer 3 switch to maintain multiple independent routing and forwarding tables.
Each VRF operates as a separate logical routing domain, with its own interfaces, routes, next-hop resolution, and forwarding decisions.
Key Concept
Global Routing Table: The default routing environment on a router.
VRF Routing Table: An independent routing environment created for a specific department, customer, or service.
Routing Isolation: Routes in one VRF are not automatically available to another VRF or the global table.
Cisco describes VRF as a mechanism for maintaining multiple routing domains on the same network device.
1.2 RIB and FIB Isolation
Each VRF maintains logically separate routing and forwarding state. The RIB contains the best routes learned for that VRF, while CEF programs forwarding information for the same VRF context. This separation is why two VRFs can both contain 10.10.10.0/24 without ambiguity: the VRF identifier is part of the forwarding context.
|
CCNP point: VRF changes the routing context. VLAN changes the Layer 2 broadcast domain. VLANs and VRFs are often used together, but they solve different problems. |
2. VRF Use Cases
Virtual Routing and Forwarding (VRF) is widely used in enterprise campuses, data centers, service provider networks, and SD-WAN environments to create multiple logically independent routing domains on shared physical infrastructure.
In a traditional network, departments and applications may use different VLANs but still share the same global routing table. This allows the network to provide inter-VLAN routing, subject to configured access controls.
With VRF, each department, customer, or service can maintain its own routing and forwarding tables without requiring a separate physical router.
Why Organizations Use VRF
Network Segmentation: Separate corporate, guest, IoT, and other environments.
Overlapping IP Addressing: Support identical IP prefixes in independent routing domains.
Multi-Tenancy: Allow multiple customers or organizations to share network infrastructure.
Management Isolation: Separate infrastructure management traffic from production traffic.
Shared Services: Provide controlled access to common resources through route leaking or security devices.
Data Center Segmentation: Maintain separate tenant routing domains across leaf-spine fabrics.
WAN Segmentation: Keep different enterprise services logically separated across branches and WAN transports.
Key Concept: VRF provides Layer 3 routing isolation. It does not automatically provide firewall inspection, traffic encryption, or complete security isolation.
2.1 Enterprise Department Segmentation
Business Requirement
A large enterprise has multiple departments operating on the same campus network:
Finance
Human Resources
Sales
IT Infrastructure
Each department must operate within its own routing domain, even though all departments connect to the same Cisco Layer 3 infrastructure.
Traditional Network Design
Without VRF, departments may use separate VLANs but share a global routing table.
2.2 Overlapping Address Space
VRF is especially useful for mergers, tenant environments, labs, service-provider edge designs, and managed services where different networks may reuse the same RFC1918 addresses. Since each VRF has its own routing table, identical prefixes do not conflict.

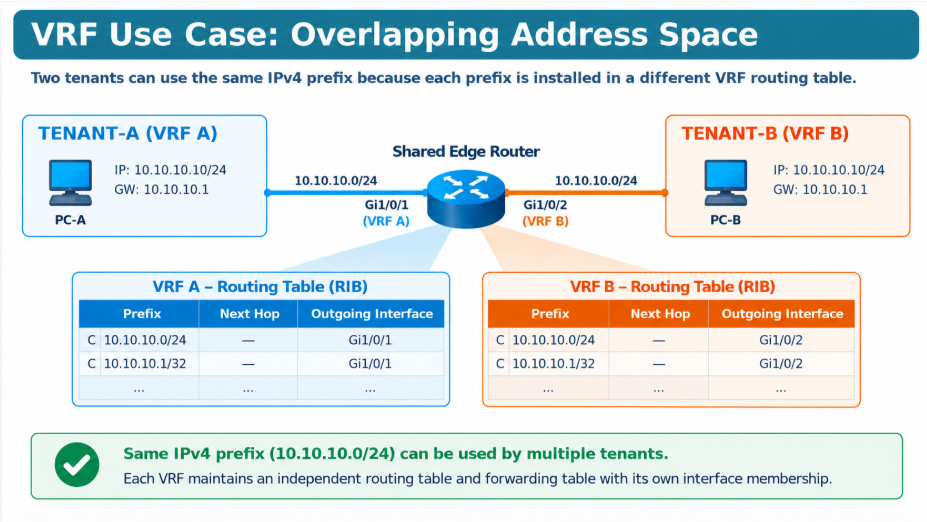

Figure 2.2 - Overlapping 10.10.10.0/24 networks…
