COURSE START-UP Welcome to the CCNA learning path. This opening lesson explains how the course is organized, how the topics connect to real network operations, and how to use the lessons, diagrams, configuration examples, verification commands, troubleshooting steps, labs, and knowledge checks effectively. The course is designed to build from fundamentals to practical enterprise networking skills so that each concept is understood not only for the exam, but also in the context of how production networks are designed, configured, verified, and supported. |
Lesson Overview
Networks connect users, applications, devices, offices, data centers, cloud services, and the Internet. Nearly every digital service depends on reliable communication between systems, which makes networking a core part of modern IT infrastructure.
This lesson introduces the role of networks, the purpose of the CCNA learning path, and the major technology areas you will study. You will see how switching, routing, wireless, IP services, security, automation, and programmability work together to form an end-to-end enterprise network.
You will also learn the recommended study approach: understand the concept, relate it to a topology, configure it, verify the result, troubleshoot failures, and then reinforce the topic through labs and review questions.
Why Networks Matter
• Networks provide the connectivity required for users to reach applications, servers, cloud platforms, voice services, wireless services, and the Internet.
• Business availability depends on resilient switching, routing, addressing, security, and network services working together.
• Network engineers must be able to identify where traffic should go, how it gets there, what can block it, and how to restore service when something fails.
• Modern networking also requires automation and controller-based management so infrastructure can be operated consistently at scale.
What You Will Learn
Network Fundamentals Network components, architectures, OSI/TCP-IP, Ethernet, switching behavior, IPv4/IPv6, and basic network operation. | Network Access VLANs, trunks, EtherChannel, STP/RSTP, wireless architectures, WLAN infrastructure, and device-management access. |
IP Connectivity Routing tables, forwarding decisions, static IPv4/IPv6 routes, OSPFv2, and first-hop redundancy. | IP Services NAT/PAT, DHCP, DNS, NTP, SNMP, Syslog, QoS, SSH, file transfer, and traffic-monitoring concepts. |
Security Fundamentals Security concepts, device access security, ACLs, Layer 2 protections, AAA, VPN concepts, and WLAN security. | Automation & Programmability Controllers, SDN interfaces, REST APIs, JSON, CRUD/HTTP, Ansible, Terraform, AI/ML concepts, and automation workflows. |
Learning Objectives
• Describe the purpose of computer networks and explain why reliable connectivity is essential to business and IT operations.
• Identify the major CCNA technology domains and explain how they contribute to an end-to-end enterprise network.
• Recognize the roles of common network devices including routers, Layer 2 and Layer 3 switches, wireless access points, wireless LAN controllers, firewalls, servers, and end-user devices.
• Explain how the course progresses from foundational concepts to configuration, verification, troubleshooting, automation, and integrated labs.
• Use a structured learning workflow: concept → topology → configuration → verification → troubleshooting → lab practice → review.
• Develop the habit of validating network behavior with show commands, packet-flow reasoning, and end-to-end testing rather than relying only on configuration output.
• Relate CCNA exam objectives to practical network operations and prepare for later capstone labs that combine multiple technologies in one topology.
Recommended Learning Approach 1. Understand what the technology does and why it is needed. 2. Study the topology and identify devices, interfaces, VLANs, subnets, and traffic direction. 3. Configure the feature using Cisco IOS examples. 4. Verify the expected state and packet path with operational commands. 5. Troubleshoot deliberately introduced faults and explain the root cause. 6. Complete the lab and knowledge check before moving to the next topic. |
Key Takeaway The goal of this course is not only to memorize commands. It is to understand how a network behaves, how technologies interact, and how to prove that the network is operating correctly. |
Now let's start from Why do we need a Network?
Start with one simple question How does a message leave your laptop, cross switches and routers, pass through security controls, reach an application, and return successfully? CCNA teaches you how to understand that entire journey. |
6 Core Areas Networking foundations | Hands-on Configuration and verification | Real-world Troubleshooting mindset |

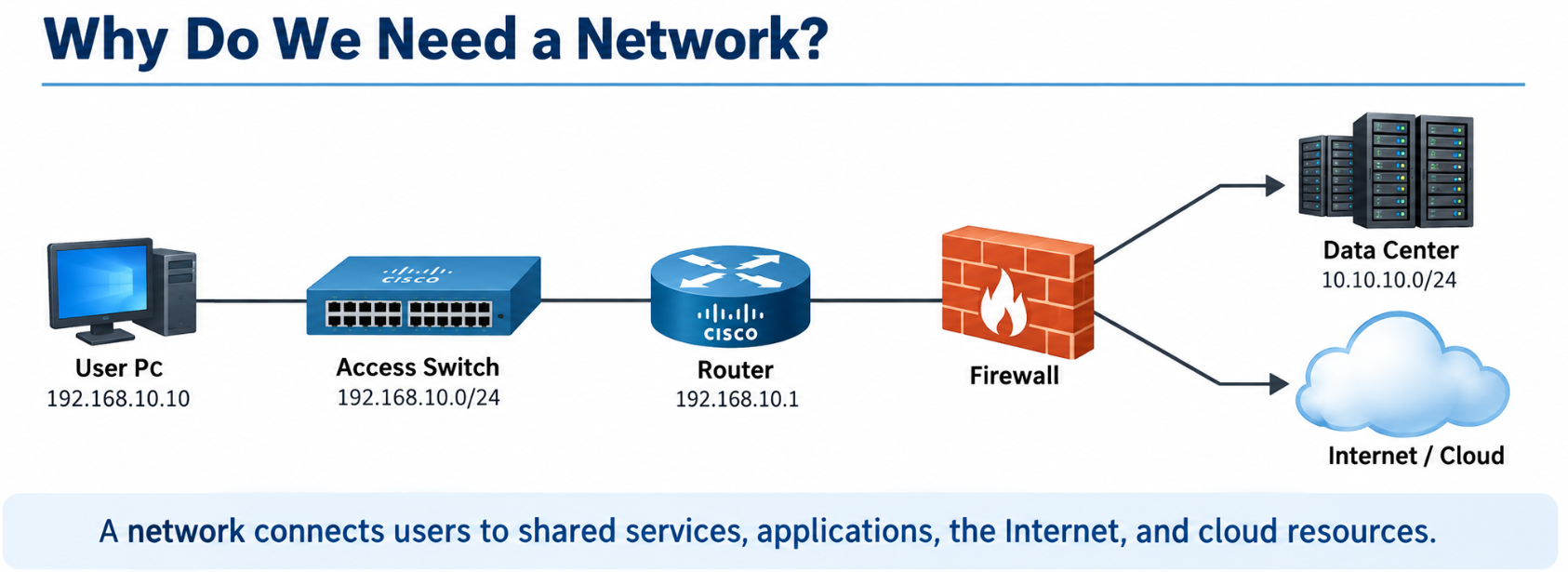

Why Do We Need Networks?
A network is the communication system that allows devices and users to share information and reach services. Without networking, computers would operate as isolated systems. With networking, a user can access applications, files, printers, voice services, cloud platforms, and the Internet from a single connected device.
Communicate Email, chat, voice, video, and collaboration tools. | Share Resources Files, printers, databases, storage, and applications. |
Reach the Internet Controlled access to websites, SaaS, and public services. | Stay Secure Firewalls, segmentation, access control, VPNs, and encryption. |
Work Remotely Secure access to business systems from anywhere. | Connect to Cloud AWS, Azure, Google Cloud, Microsoft 365, and more. |

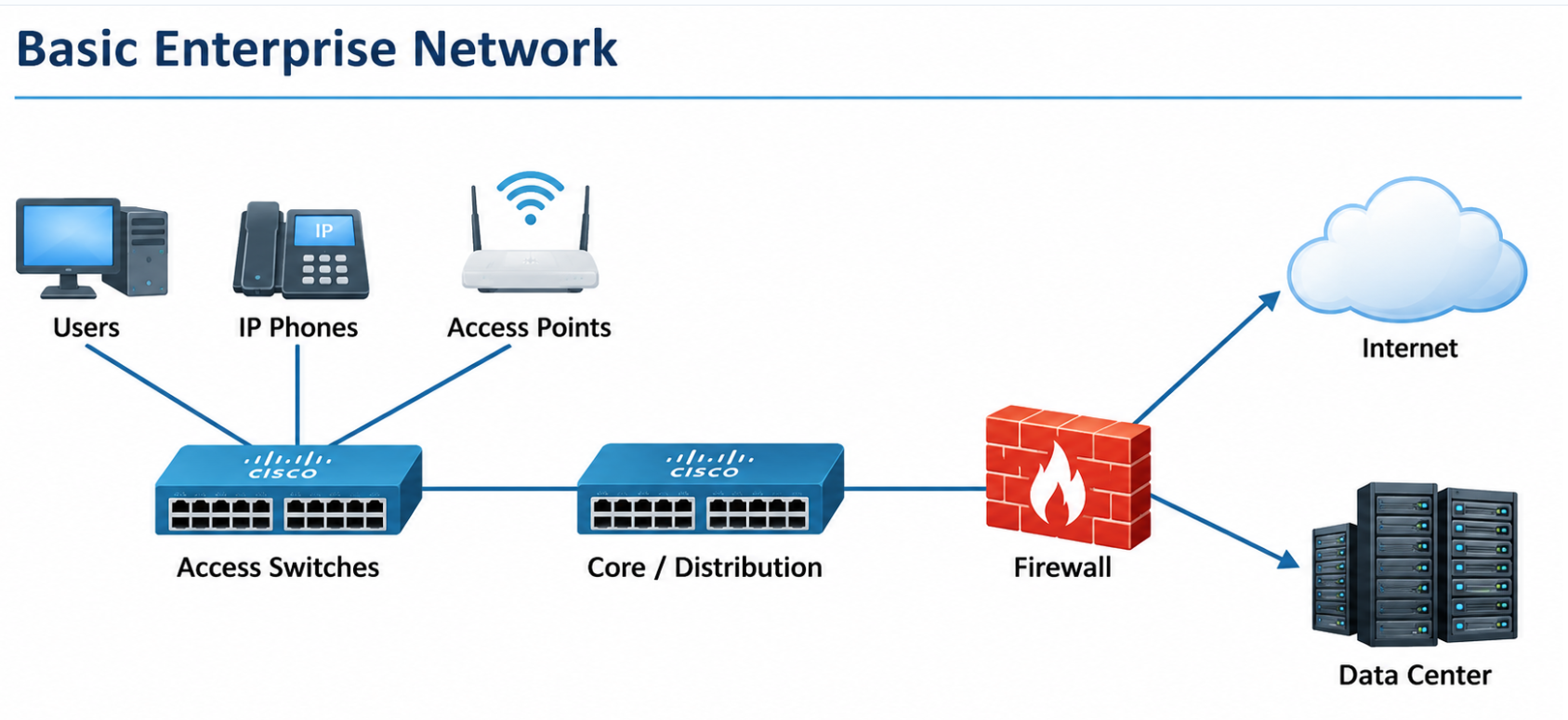

Most enterprise networks follow a layered path. Users connect to the access layer, traffic is aggregated by the core or distribution layer, and a firewall controls access to the Internet and data-center services.
Basic Enterprise Network : Users → Access → Core/Distribution → Security → Internet / Data Center
Think like a network engineer When a user says “the application is not working,” do not jump immediately to the application. Follow the path: physical link → switching → IP addressing → routing → security → destination. |

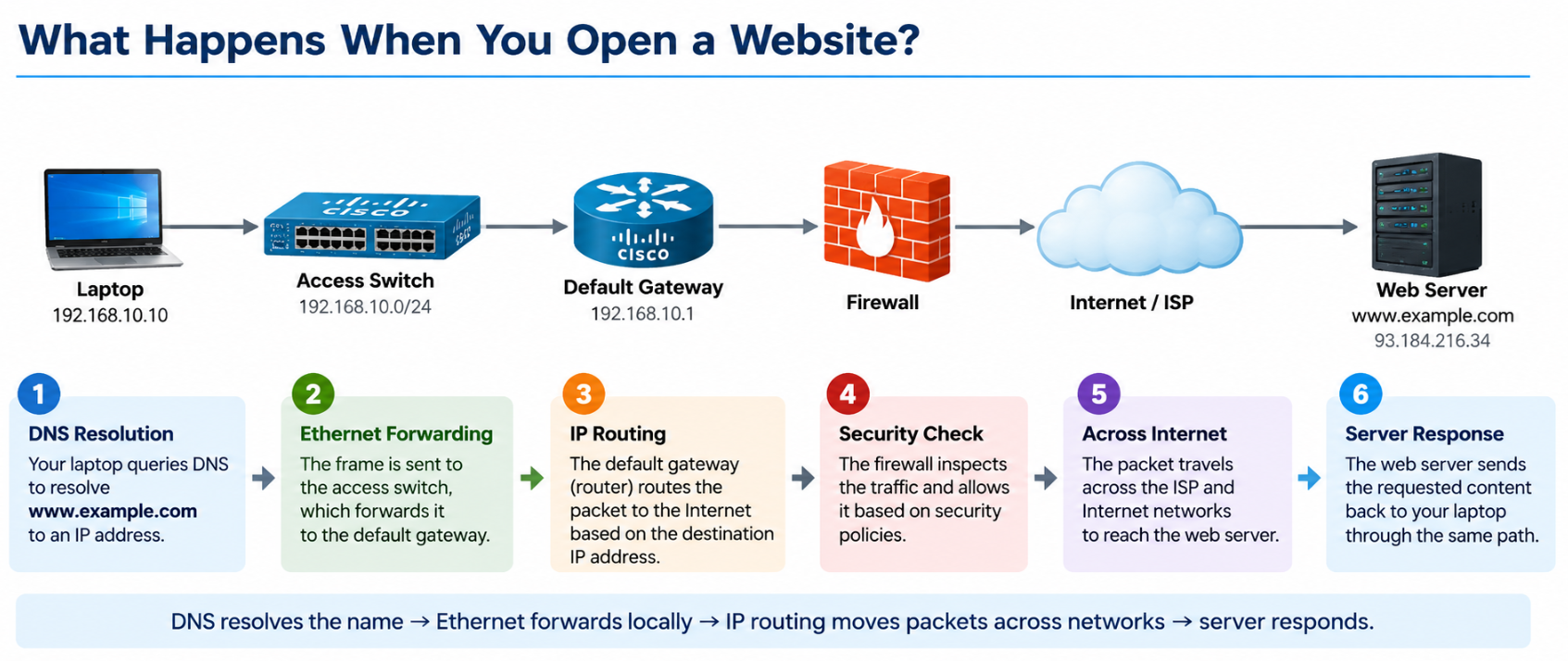

What Happens When You Open a website?
Opening a website may look instant, but many networking functions happen in sequence. Understanding this flow is one of the best ways to understand why CCNA topics matter.
Traffic flow from source to destination : Laptop → Access Switch → Default Gateway → Firewall → Internet / ISP → Web Server
1 | DNS finds the destination — The website name is translated into an IP address. |
2 | Ethernet moves traffic locally — Frames travel through the local LAN using MAC addresses. |
3 | Routing moves packets between networks — Routers use destination IP addresses and routing tables. |
4 | Security policies are applied — Firewalls and ACLs decide what traffic is permitted. |
5 | The server responds — Return traffic follows a valid network path back to the user. |
What Is CCNA?
Cisco Certified Network Associate (CCNA) develops the foundation needed to understand, configure, verify, secure, and troubleshoot modern IP networks. It is not only about memorizing commands—the goal is to understand why the network behaves the way it does.
CCNA mindset Learn the concept → understand the packet flow → configure the feature → verify the result → troubleshoot failures. |
1. Network Fundamentals
• OSI and TCP/IP models
• Ethernet, cabling, interfaces, and network devices
• OSI model, TCP/IP, switching
• IPv4 and IPv6 fundamentals
• Wireless and Virtualizations
2. Network Access
• VLANs and trunking
• Inter-VLAN communication
• EtherChannel, STP, and wireless fundamentals
• Wireless architecture, Managment access and infrastructure
3. IP Connectivity
• Routing tables and path selection
•IPv4 and IPv6 Static/default routing
• OSPF and first-hop redundancy concepts
4. IP Services
• DHCP, DNS, NAT, NTP
• SNMP and Syslog
• QoS concepts
5. Security Fundamentals
• ACLs and device hardening
• Port security and secure management
• AAA, VPN, and IPsec concepts
6. Automation & Programmability
• APIs and JSON
• Controller-based networking
• SDN and configuration automation concepts
How Networking Works Layer by Layer
Application | User-facing services such as HTTP, DNS, SSH, and email. |
Transport | End-to-end communication using TCP and UDP. |
Network | Packet forwarding using IP addresses and routing. |
Data Link | Local frame forwarding using MAC addresses. |
Physical | Bits transmitted across copper, fiber, or wireless. |
The Network Engineer’s Role
A network engineer is responsible for keeping the communication path available, secure, scalable, and understandable. CCNA builds the foundation for these responsibilities.
• Design and deploy LAN, WAN, wireless, and Internet connectivity.
• Configure routers, switches, and network services.
• Manage addressing, VLANs, routing, and security policies.
• Monitor availability, performance, and interface health.
• Troubleshoot connectivity from source to destination.
• Connect branches, data centers, remote users, and cloud environments.
• Use automation to improve consistency and reduce repetitive work.

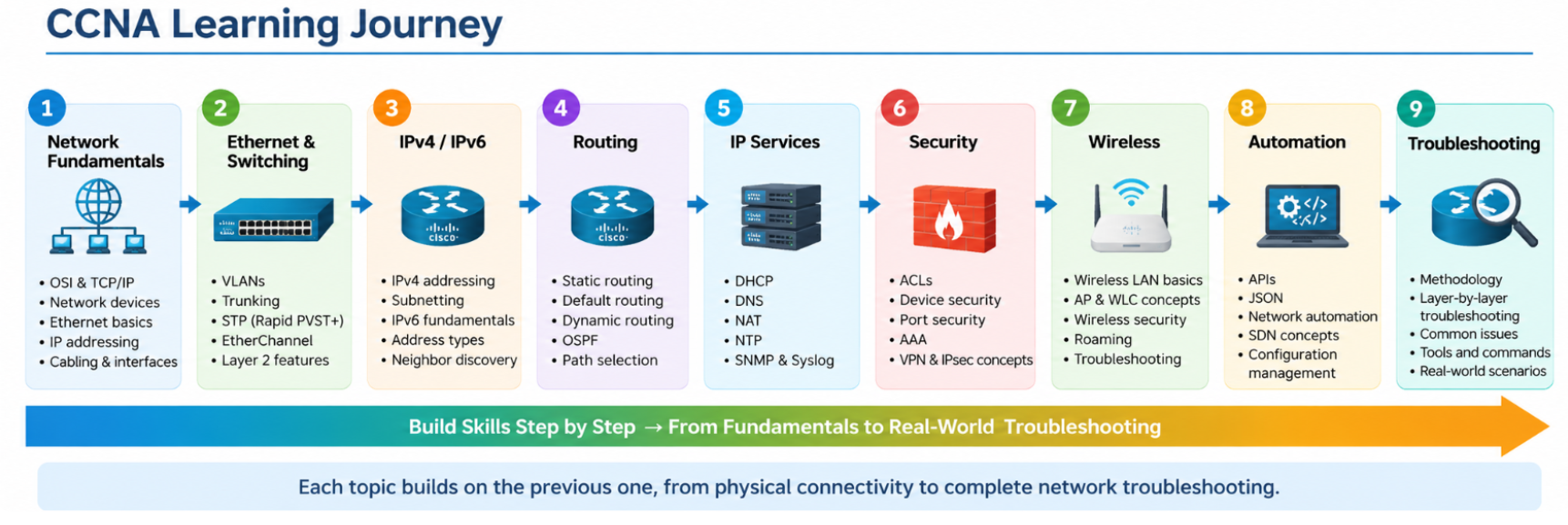

CCNA Learning Journey
Build the foundation first, then progress toward complete network troubleshooting.
Your goal is not just to pass an exam
By the end of the course, you should be able to look at a network diagram, understand how traffic is expected to flow, identify where a failure may exist, and use the correct commands to verify it.
Your goal is not just to pass an exam By the end of the course, you should be able to look at a network diagram, understand how traffic is expected to flow, identify where a failure may exist, and use the correct commands to verify it. |
A Simple Troubleshooting Habit to Learn from Day One
SOURCE → PHYSICAL → SWITCHING → ROUTING → SECURITY → APPLICATION → DESTINATION
If any part of this path fails, communication may fail. This end-to-end thinking will be used throughout the course.
Course Goal
By completing this CCNA course, you should understand how modern IP networks operate and be able to perform basic configuration, verification, and troubleshooting of routers, switches, network services, wireless connectivity, and security features.
The first question we will answer is: “How do two devices communicate with each other?”
WELCOME TO YOUR CCNA LEARNING JOURNEY |
