LESSON PURPOSE Develop a practical understanding of the management, monitoring, traffic-handling, secure-access, and file-transfer services commonly used to operate Cisco networks. The lesson connects each protocol to its operational purpose and the Cisco IOS commands used to configure, verify, and troubleshoot it. |
Lesson Overview
Network operations require more than basic switching and routing. Administrators need visibility into device health, centralized event records, predictable treatment of important traffic, secure remote access, and reliable methods to move configuration or software files.
This lesson introduces SNMP for monitoring and management data, Syslog for centralized event logging, QoS for classifying and controlling traffic behavior, SSH for encrypted CLI access, and TFTP/FTP for network file transfer. It emphasizes protocol roles, commonly used ports, security considerations, basic Cisco IOS configuration concepts, verification commands, and troubleshooting workflow.
Service Scope
Service | Primary Role | Common Transport / Port |
SNMP | Monitor/manage devices; counters, status, notifications | UDP 161 queries / 162 traps-informs |
Syslog | Centralized event and severity logging | UDP 514 commonly; secure variants may use TCP/TLS |
QoS | Classify, mark, queue, police, and shape traffic | Traffic-control function, not one application port |
SSH | Encrypted remote CLI administration | TCP 22 |
TFTP | Simple connectionless file transfer | UDP 69 |
FTP | Authenticated connection-oriented file transfer | TCP 21 control; TCP data connection |
Learning Objectives
• Explain the purpose of SNMP and identify the roles of the SNMP manager, agent, MIB, OID, polling, traps, and informs.
• Differentiate basic SNMP version/security characteristics and recognize why SNMPv3 is preferred when authentication and encryption are required.
• Explain Syslog operation, message severity levels, timestamps, and the value of sending device logs to a centralized Syslog server.
• Describe core QoS functions: classification, marking, queuing/congestion management, policing, and shaping, and explain why QoS becomes important when bandwidth is constrained.
• Configure and verify secure SSH access using local credentials, RSA keys, SSH version 2, and VTY line settings; distinguish SSH from insecure Telnet access.
• Compare TFTP and FTP in terms of transport, authentication, reliability, and typical network-device file-transfer use cases.
• Use common Cisco IOS verification commands to confirm SNMP, Syslog, QoS, SSH, and file-transfer operation.
• Troubleshoot common failures such as unreachable management servers, incorrect community/user settings, missing logging destinations, QoS policy attachment errors, SSH prerequisites, and file-transfer path or permission issues.
CCNA ALIGNMENT — Builds operational knowledge of common IP services and management tools by linking protocol purpose to configuration, verification, troubleshooting, security, and day-to-day network administration. |

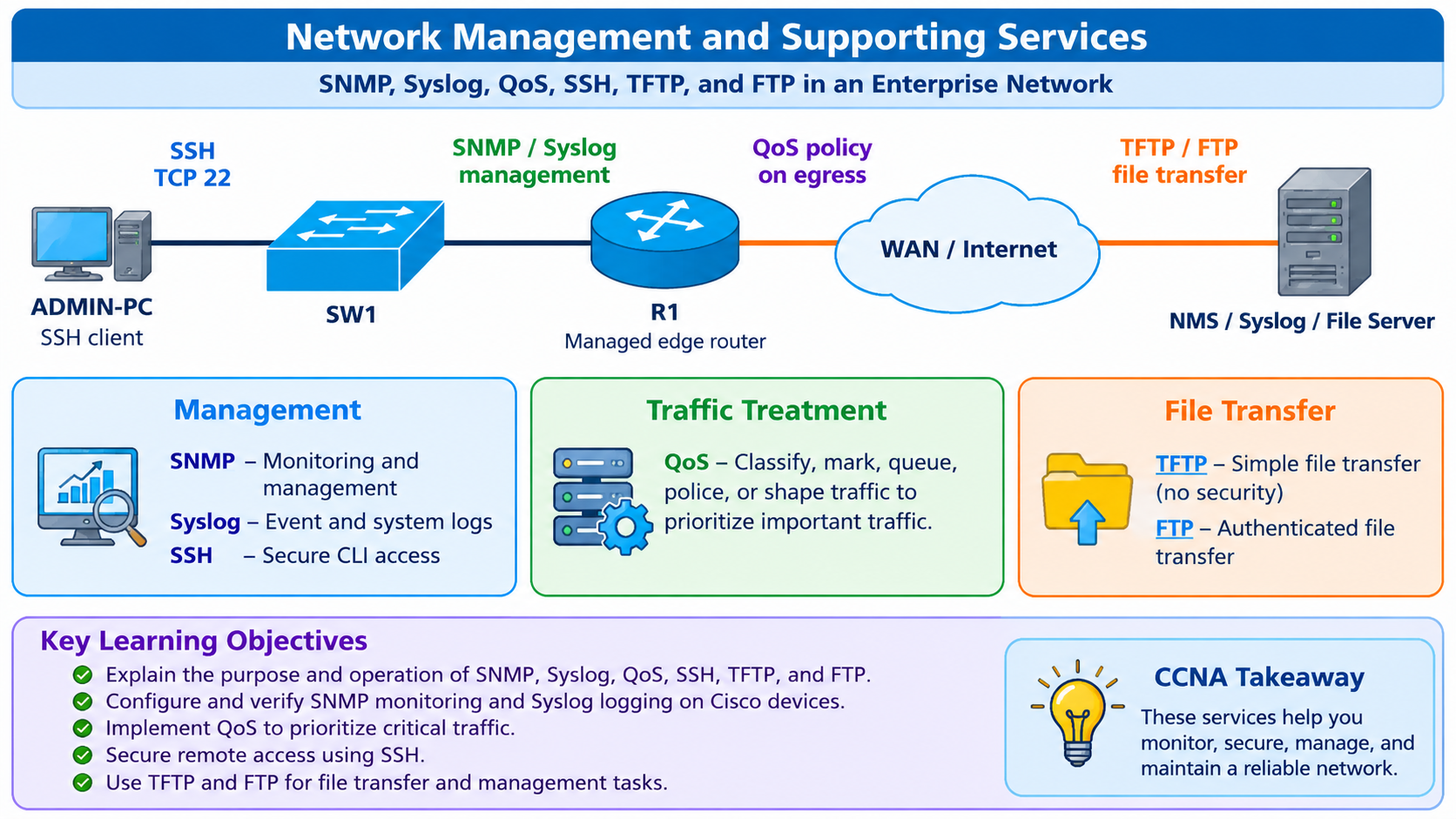

Enterprise management and supporting services overview.
|
Study objective: Understand what each service does, where it operates, how to configure common Cisco IOS/IOS XE examples, and how to verify and troubleshoot it. |
1. Management-Plane Foundations
Network services work only after basic IP reachability, routing, addressing, and time are correct. Before troubleshooting an application such as SNMP or FTP, verify the lower layers first. A management VLAN or out-of-band management network is commonly used to separate administrative traffic from user traffic.
Common service ports and transport protocols
|
Service |
Typical transport / port |
Purpose |
|
SNMP polling |
UDP 161 |
Manager queries an agent; agent responds. |
|
SNMP traps/informs |
UDP 162 |
Device sends notifications to a manager/receiver. |
|
Syslog |
UDP 514 commonly; TCP 514 is also supported by some systems |
Centralized event logging. |
|
SSH |
TCP 22 |
Encrypted remote CLI management. |
|
TFTP |
UDP 69 |
Simple file transfer without built-in authentication. |
|
FTP |
TCP 21 control; active mode traditionally uses TCP 20 data |
Authenticated file transfer; data channel behavior depends on active/passive mode. |
|
QoS |
No single application port |
Traffic classification/treatment feature applied to interfaces and classes. |
|
Important: Port numbers alone do not prove the application is healthy. Verify routing, ACL/firewall policy, source interface, authentication, service state, and return-path reachability. |
2. SNMP - Simple Network Management Protocol
SNMP allows a central management station (an NMS — Network Management Station, e.g., SolarWinds, PRTG, LibreNMS) to monitor and, in some cases, configure network devices such as routers, switches, and servers. Devices expose a tree of manageable variables described by a MIB (Management Information Base); each variable is addressed by an OID (Object Identifier).

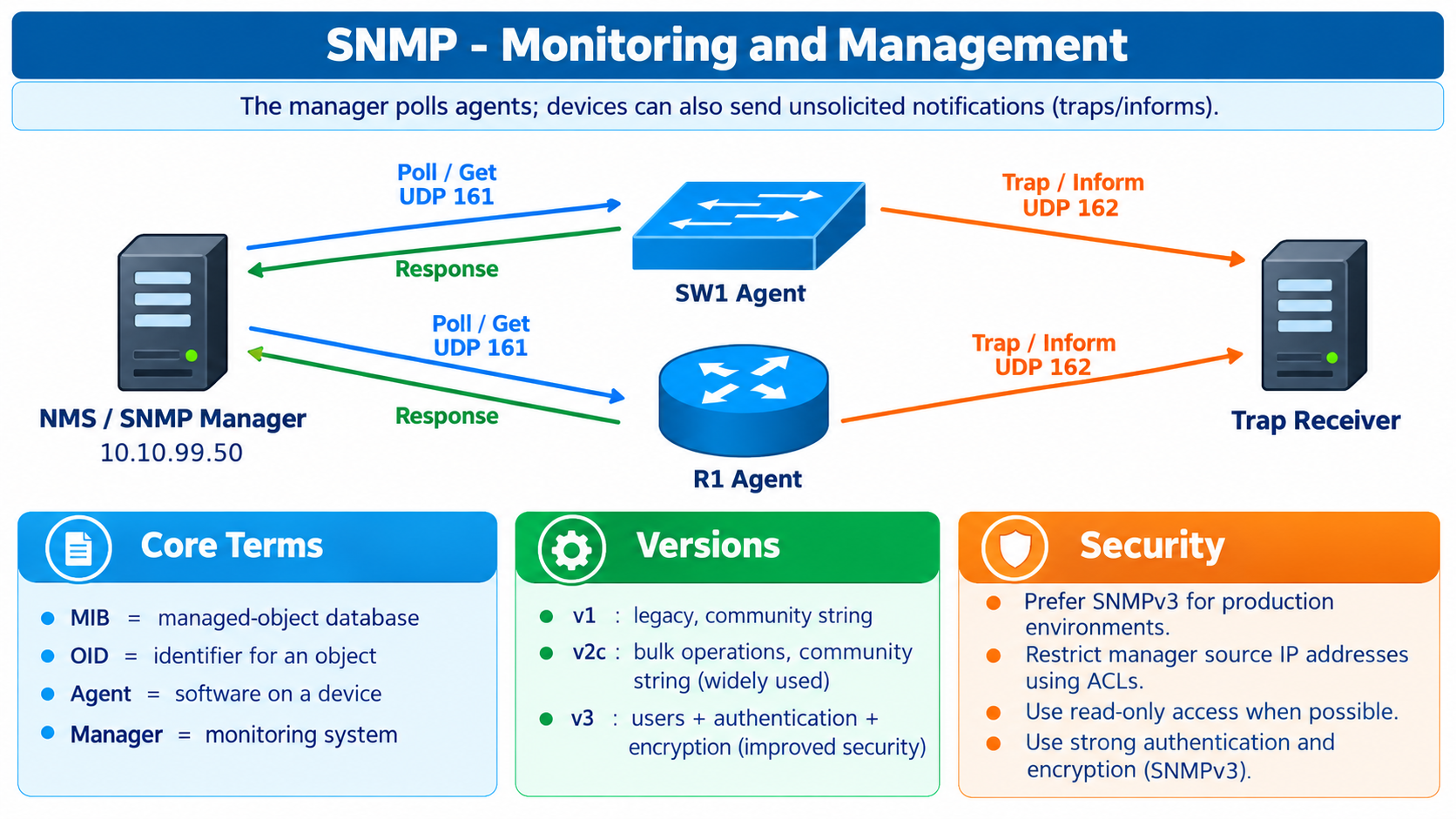

Figure 2. SNMP manager, agents, polling, and notifications.
2.1 Components
- Manager (NMS) — the central system that polls devices and/or receives notifications.
- Agent — software running on the managed device that responds to queries and can send notifications.
- MIB — a structured, hierarchical database defining what data an agent can report (e.g., interface counters, CPU load, uptime).
- OID — a dotted-numeric address identifying a specific MIB variable (e.g., 1.3.6.1.2.1.1.3.0 = sysUpTime).
2.2 SNMP Operations
- GET — manager requests the value of a specific OID.
- GETNEXT — manager requests the next OID in the MIB tree (used to "walk" a MIB).
- SET — manager changes the value of a writable OID on the agent (used for limited remote configuration).
- TRAP — agent proactively sends an unsolicited notification to the manager when a significant event occurs (e.g., interface down). Sent without acknowledgment.
INFORM — like a trap, but the receiving manager must acknowledge it; the agent retransmits if no ack…
