4.2 DHCP, DNS, and NTP

Lesson Overview

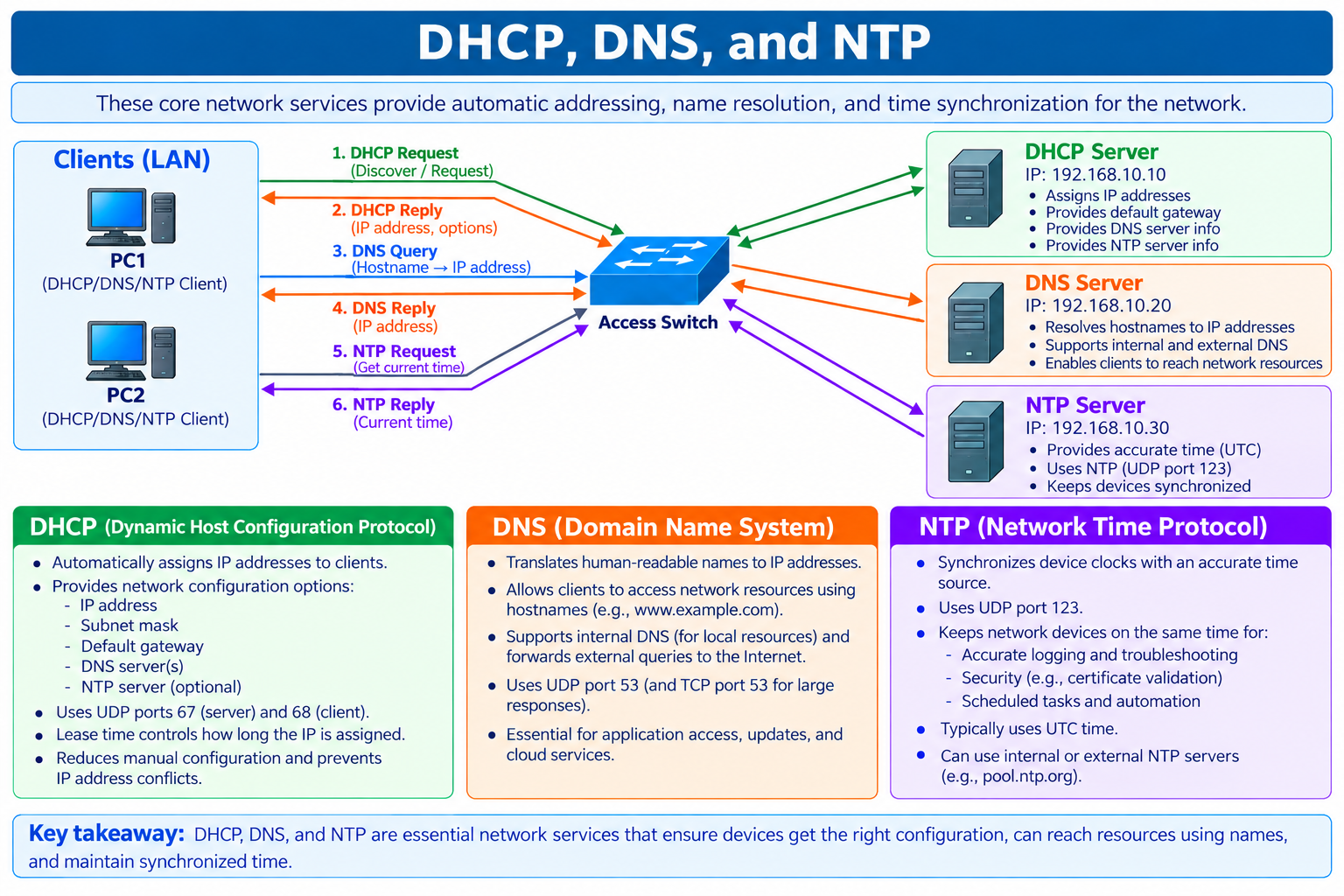

Modern IP networks depend on several core services to provide devices with the information they need to communicate reliably. DHCP, DNS, and NTP perform three different but closely related functions: DHCP automatically provides IP addressing and network parameters, DNS translates human-readable names into IP addresses, and NTP keeps device clocks synchronized to a common time source.

Learning Objectives

By the end of this lesson, a learner should be able to explain how DHCP, DNS, and NTP work, configure common Cisco IOS/IOS XE client/server functions, verify operation, and troubleshoot failures using a structured workflow.

• Explain DHCP client/server operation, DORA, lease behavior, common options, and DHCP relay.
• Configure and verify a Cisco IOS/IOS XE DHCP server, DHCP client, and DHCP relay using ip helper-address.
• Explain DNS resolution, recursive and iterative queries, record types, caching, TTL, and UDP/TCP port 53.
• Configure a Cisco network device to use DNS servers and verify hostname resolution.
• Explain NTP client/server operation, stratum, time sources, clock synchronization, and UDP port 123.
• Configure and verify NTP clients and a simple Cisco NTP server/master for lab use.
• Troubleshoot address assignment, name resolution, and time synchronization end to end.

A production network can have perfect Layer 2 switching and Layer 3 routing and still be difficult or impossible to use if clients cannot obtain valid addressing, resolve names, or maintain accurate time. DHCP, DNS, and NTP solve these operational problems.

Service	Purpose	Common Transport	Typical Client Result
DHCP	Automatically supplies IPv4 addressing and network options	UDP 67 server / UDP 68 client	IP, mask, gateway, DNS, lease and options
DNS	Maps names to addresses and other resource information	UDP/TCP 53	Hostname resolution such as server.example.com -> IP
NTP	Synchronizes clocks across devices	UDP 123	Accurate, consistent device time

CCNA memory rule DHCP tells a device HOW to join the IP network. DNS tells it WHERE a named resource is. NTP tells it WHAT TIME it is.

2. DHCP - Dynamic Host Configuration Protocol

2.1 What DHCP Does

DHCP automates IPv4 host configuration. Instead of manually configuring every endpoint, an administrator defines address pools and options on a DHCP server. Clients dynamically lease addresses and receive the information they need to communicate.

• Reduces manual addressing effort and configuration errors.
• Centralizes address management.
• Supports reusable leases instead of permanently assigning every address.
• Can supply additional parameters such as default gateway, DNS servers, domain name, and NTP servers.
• Works across routed networks when a DHCP relay agent is configured.

2.2 DHCP Components

Component	Role
DHCP client	Endpoint requesting configuration.
DHCP server	Maintains pools/scopes and leases addresses.
DHCP pool/scope	Address range and options for one subnet.
Lease	Time-limited assignment of an address to a client.
DHCP relay agent	Forwards client DHCP traffic between different IP subnets.
Excluded/reserved address	Address kept out of dynamic allocation for infrastructure or fixed devices.

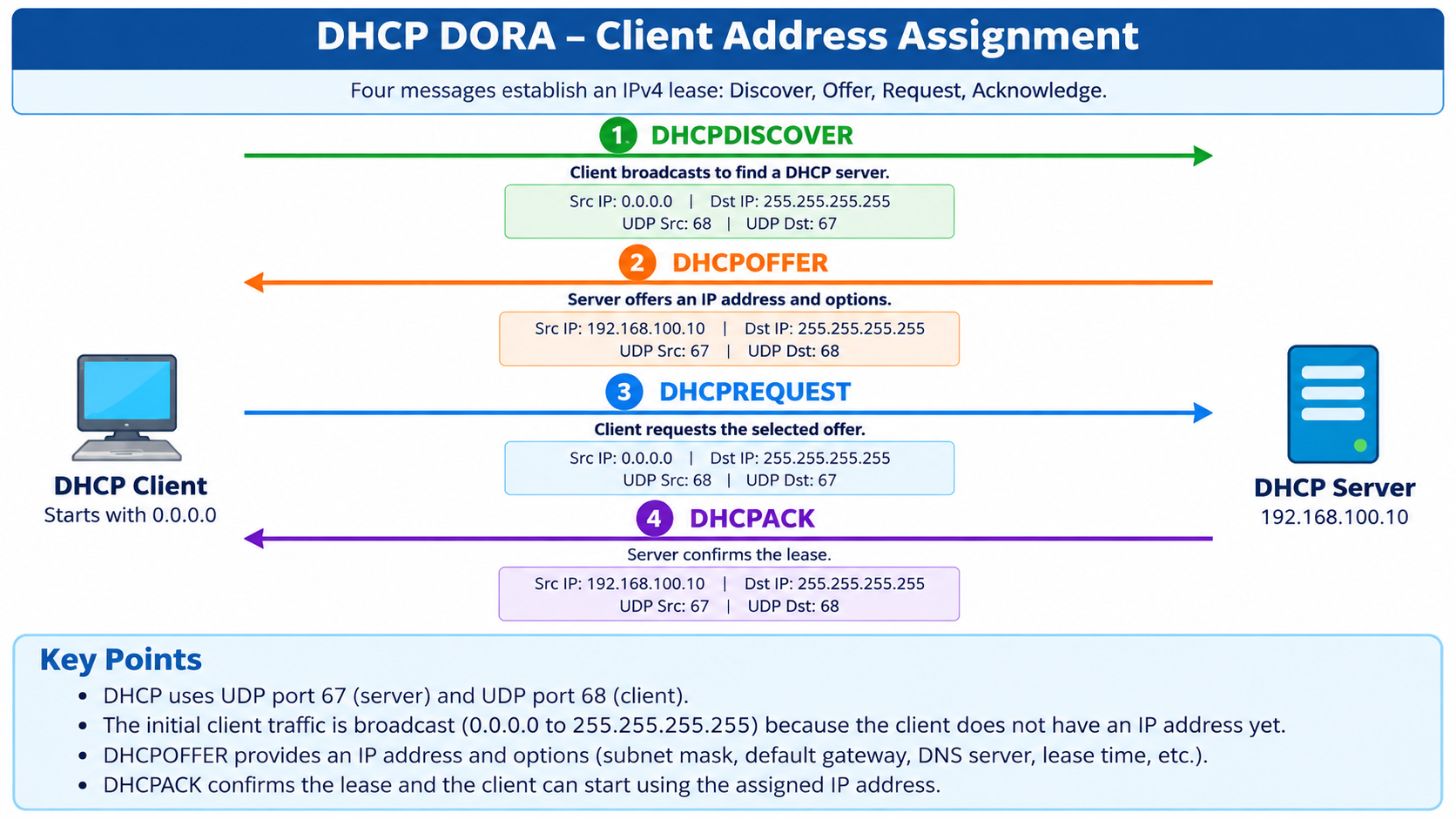

2.3 DHCP DORA - Full Working Process

1. DHCPDISCOVER: A client that does not yet know a DHCP server sends a discovery message. In a typical IPv4 LAN this is broadcast because the client cannot      yet rely on a configured IP address or server address.
