1.1 Enterprise Network Design

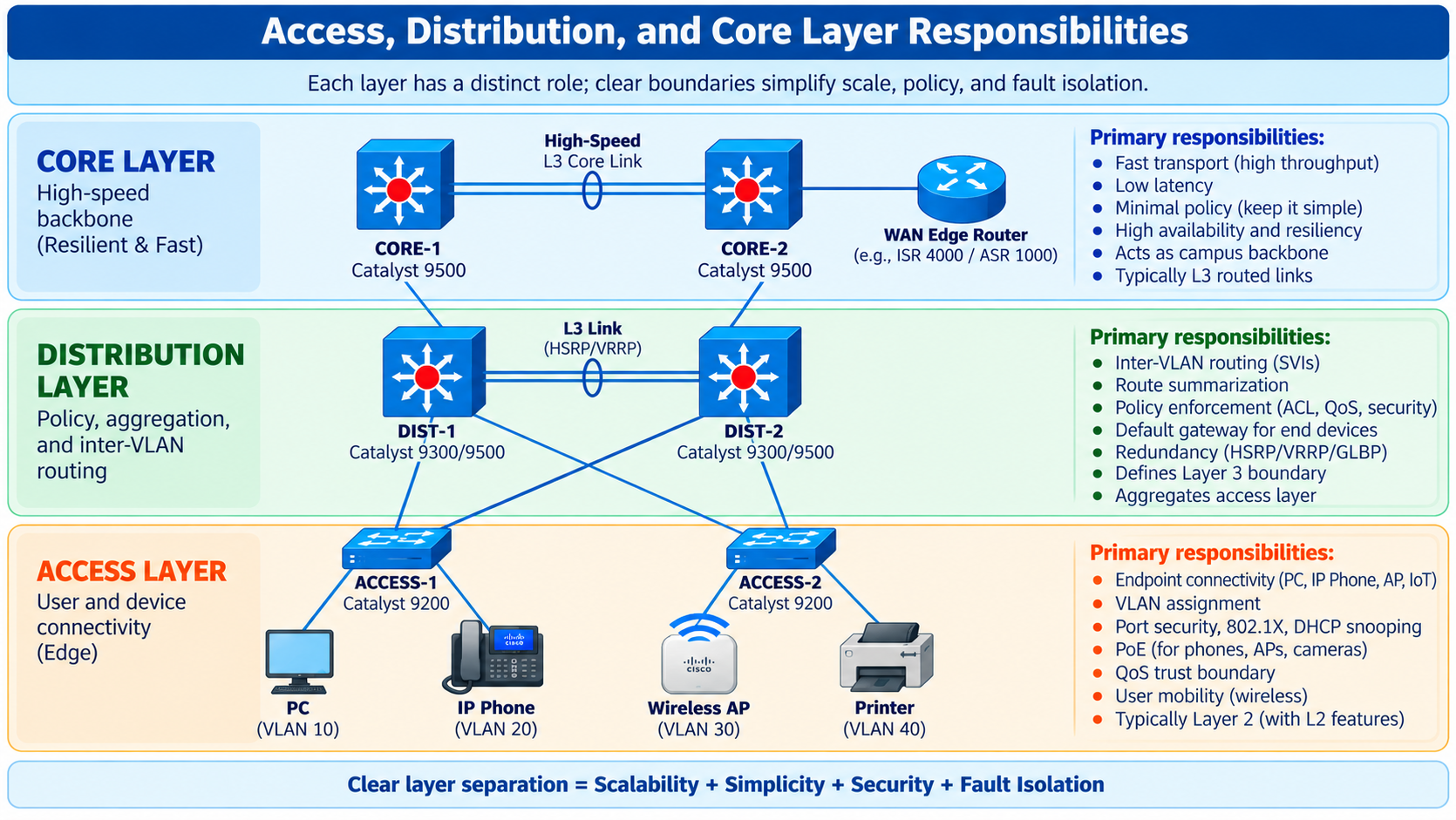

Figure 6 — Functional responsibilities of access, distribution, and core layers

6.1 Access Layer

The access layer is where users, phones, access points, cameras, printers, and other edge devices attach. It is the first enforcement point for many edge policies and therefore must balance user connectivity with security and operational simplicity.

• Endpoint connectivity and VLAN assignment
• PoE for phones, APs, and IoT devices
• Edge security such as port security/802.1X features where deployed
• QoS classification or trust boundary
• Redundant uplinks toward distribution
• Fast restoration when an uplink fails

6.2 Distribution Layer

The distribution layer aggregates access switches and creates a control boundary between endpoint-oriented Layer 2 functions and the routed campus backbone. It is a natural location for summarization, policy, default-gateway redundancy, and route control.

• Inter-VLAN routing / SVI gateways
• FHRP when first-hop redundancy is required
• Route summarization toward the core
• ACL or policy boundaries
• Path control and routing protocol boundaries
• Containment of access-layer failures

6.2 Core Layer

The core is the campus backbone. Its job is reliable transport between distribution blocks and key services. Core design usually favors routed point-to-point links, equal-cost paths, fast convergence, low latency, and minimal feature complexity.

• High-speed Layer 3 forwarding
• Redundant paths between distribution blocks
• ECMP and fast convergence
• Connectivity toward WAN, data center, Internet edge, or shared services
• Minimal policy processing compared with distribution

7. Enterprise Campus Design Principles

Enterprise campus design is not only a topology choice. It is a set of rules that keep the topology understandable as it grows. The following principles are especially important at CCNP level.

Principle 1 — Build Repeatable Modules

A building, floor, or access block should follow a repeatable pattern. Standardizing access/distribution blocks reduces design variation and makes operations predictable. If Building C is built like Buildings A and B, engineers already understand its uplinks, VLAN boundaries, routing behavior, and failure modes.

Principle 2 — Bound Layer 2 Where Possible

Large Layer 2 failure domains can amplify loops, broadcast storms, and spanning-tree events. Enterprise designs therefore try to keep Layer 2 domains intentionally bounded and use Layer 3 boundaries to contain faults and provide deterministic convergence.

Principle 3 — Summarize at Natural Boundaries

If each distribution block uses a planned address range, the block can advertise a summary toward the core. The core then carries fewer routes and is less affected by access-level changes. Summarization also creates a clean fault and policy boundary.

Principle 4 — Prefer Deterministic Paths

A design should make the normal forwarding path and the failure path easy to predict. Excessive Layer 2 triangles, inconsistent STP root placement, asymmetric routing through stateful firewalls, or unclear route redistribution can all make outages harder to diagnose.

Principle 5 — Align Layer 2 and Layer 3 Roles

The STP root, active default gateway, and preferred Layer 3 exit should be intentionally aligned when a design uses Layer 2 access and FHRP. Misalignment can cause traffic to cross unnecessary peer links and create suboptimal paths.

Principle 6 — Design Operations into the Architecture

1. Use consistent device naming and interface descriptions.
2. Reserve infrastructure address space for loopbacks and point-to-point links.
3. Define monitoring and logging from the start, not after deployment.
4. Document normal and failure traffic paths.
5. Use templates so new access blocks are deployed consistently.
6. Keep change domains small enough that maintenance can be performed without campus-wide risk.

8. Scalability and Resiliency Concepts

Scalability is the ability to add users, devices, bandwidth, buildings, and services without a fundamental redesign. Resiliency is the ability to continue providing acceptable service when components fail. Good enterprise design treats both as architectural requirements rather than afterthoughts.

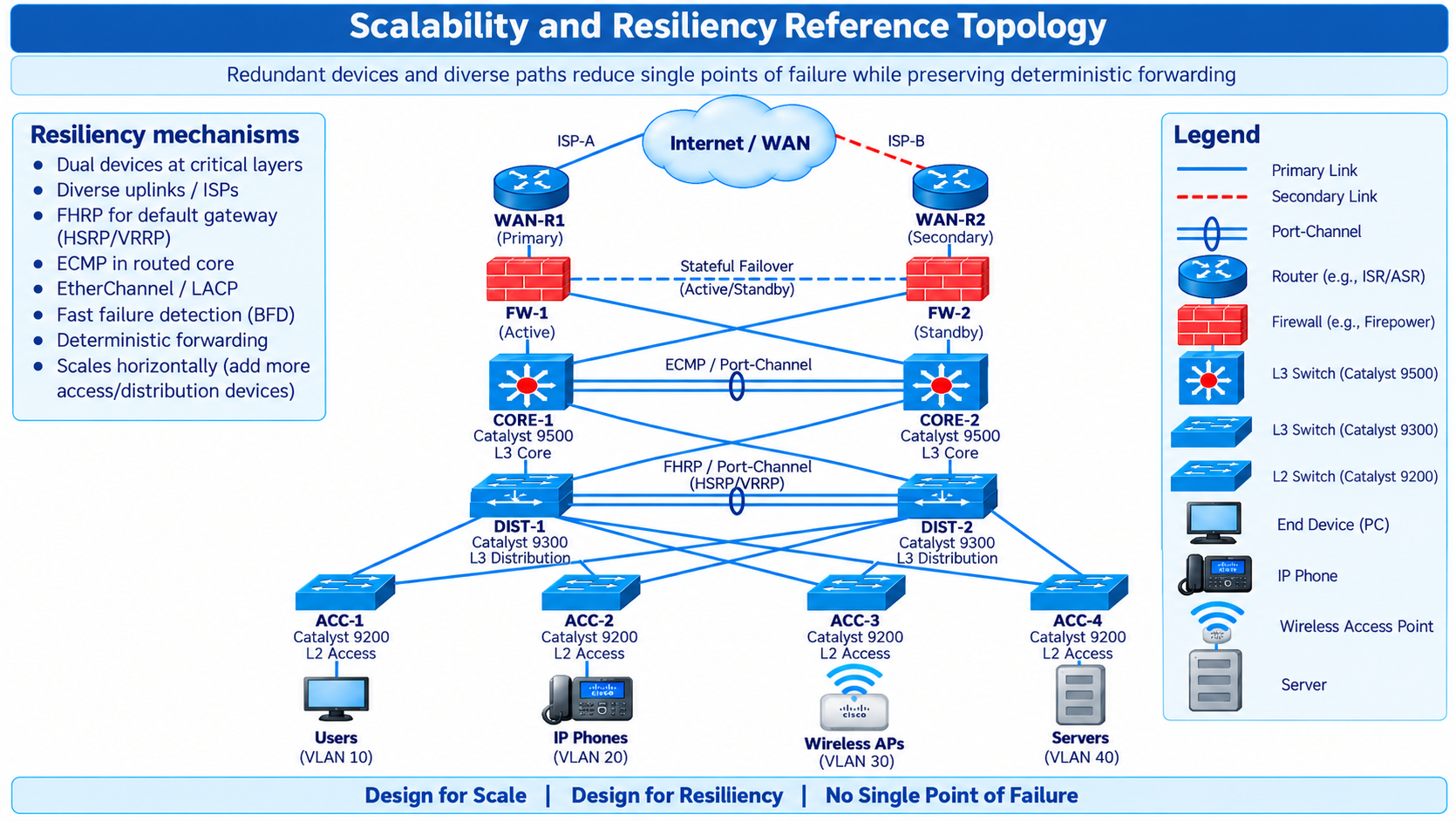

Figure 8 — Redundant enterprise topology using diverse devices and paths

8.1 Scalability Mechanisms

8.2 Resiliency Mechanisms

8.3 Failure Domains

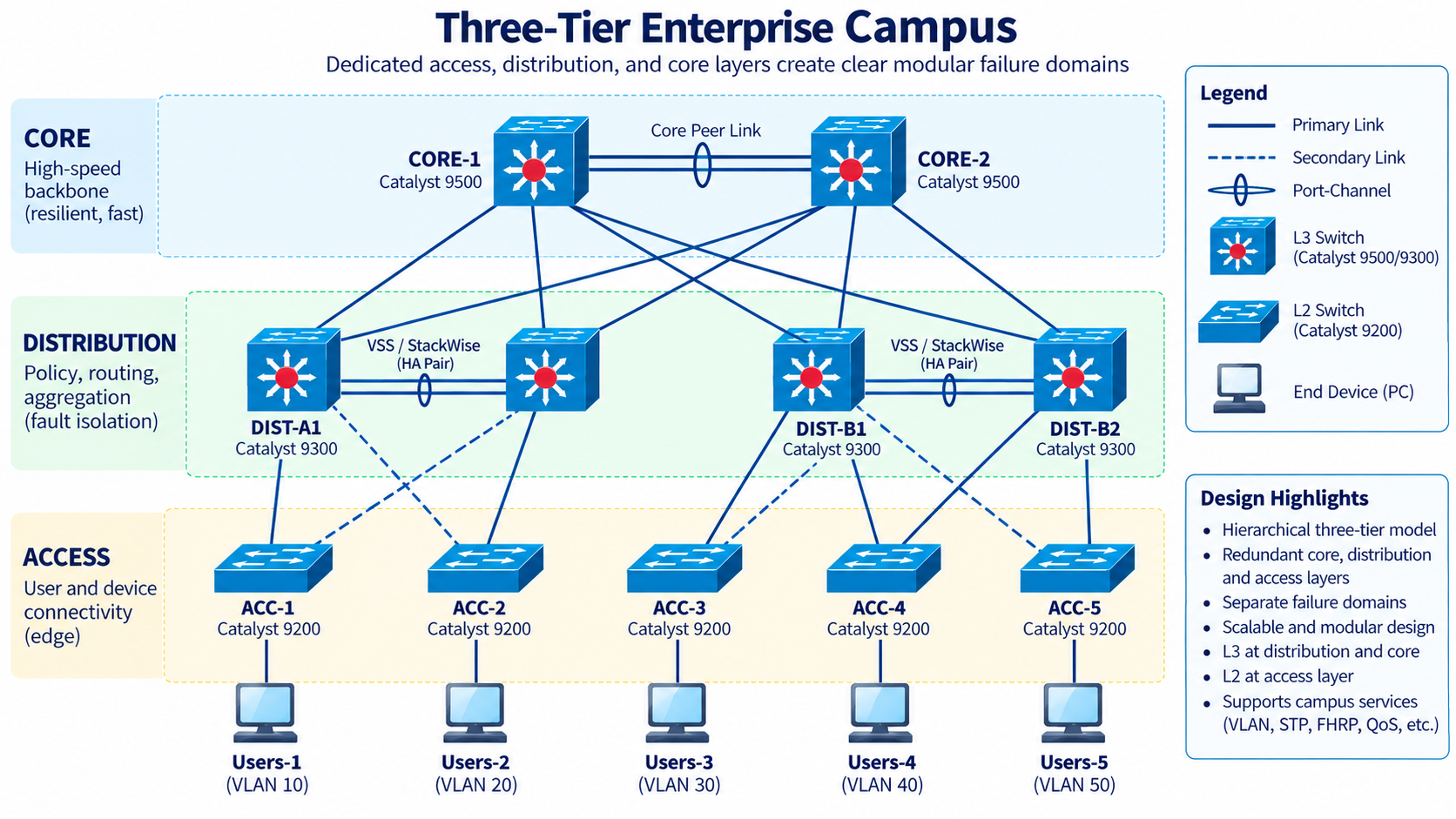

A failure domain is the portion of the network affected by a failure or control-plane event. A key design goal is to keep failure domains as small as practical. In a modular three-tier campus, a problem in Building A should ideally remain within the Building A access/distribution block rather than affecting Buildings B and C.

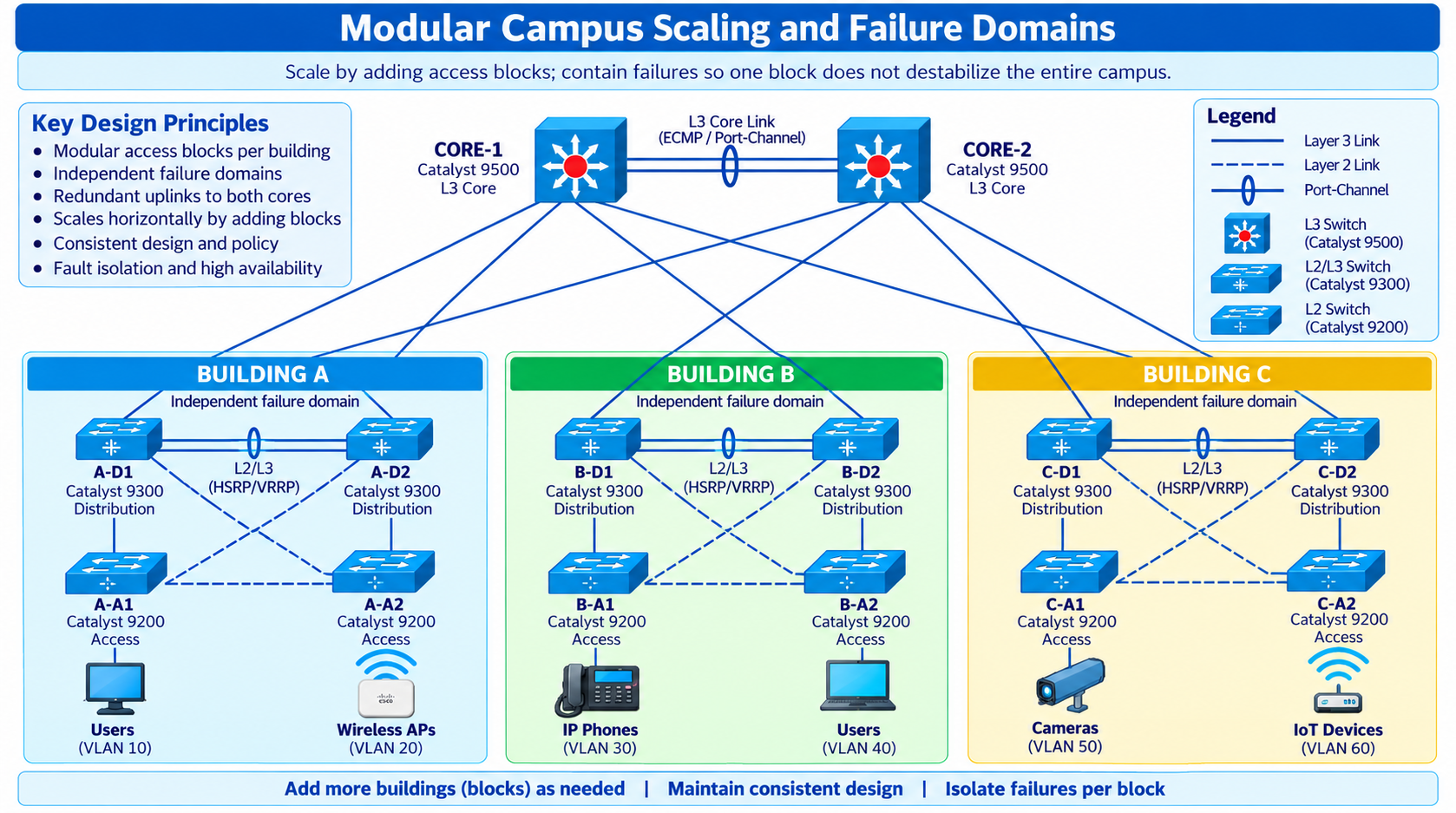

Figure 8.3 — Modular distribution blocks create repeatable scale units and smaller failure domains

9. End-to-End Enterprise Reference Design

The following reference design combines the concepts from this lesson into one practical enterprise topology. It includes an HQ campus, a data center, a branch, WAN/Internet connectivity, and a public-cloud network. The goal is not to prescribe one universal design, but to show how hierarchy, modularity, routing boundaries, and redundant paths work together.

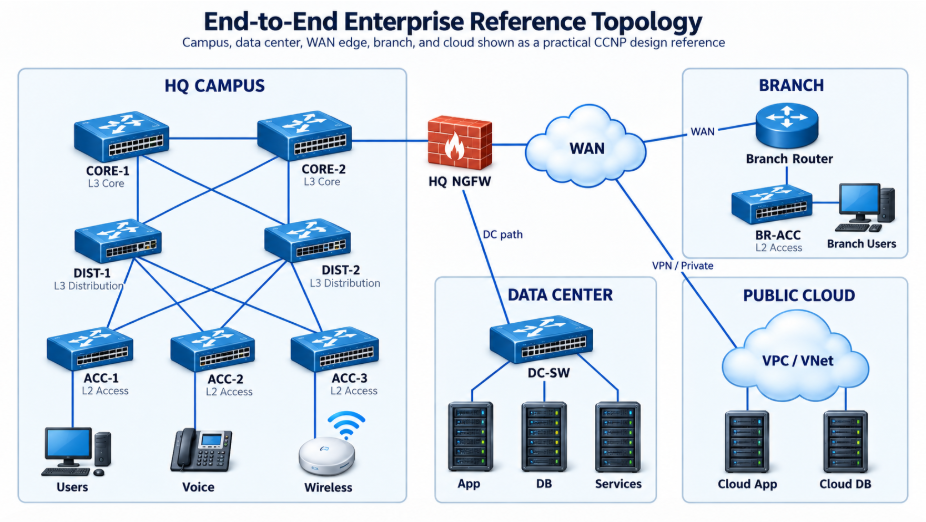

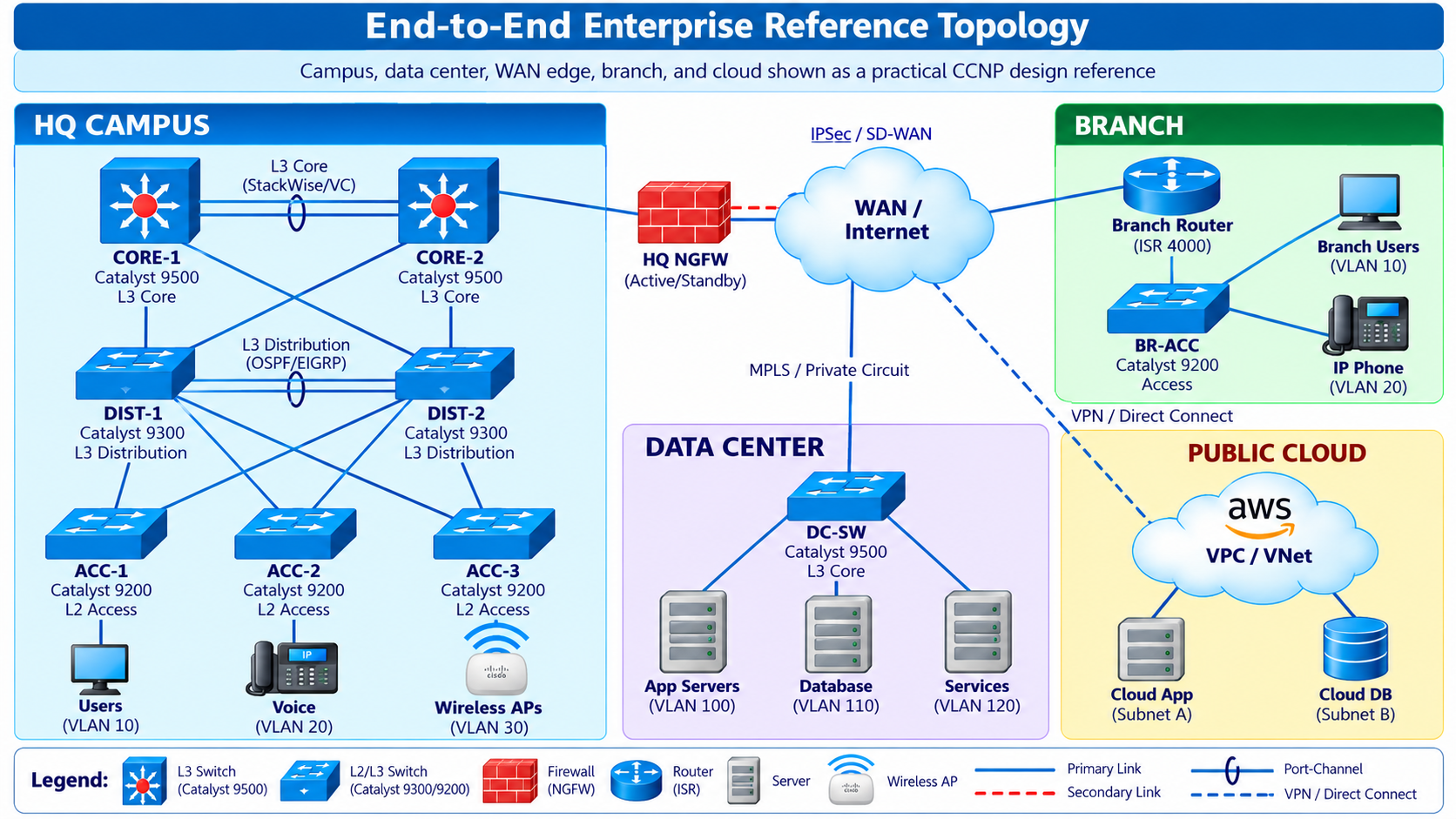

Figure 9 — End-to-end enterprise reference topology

9.1 Normal User-to-Cloud Packet Flow

1. User frame enters an access switch in the HQ campus.

2. Traffic is forwarded toward the distribution/default-gateway layer.

3. The distribution layer routes toward the campus core/edge.

4. The enterprise firewall applies security policy and forwards toward WAN/Internet or private cloud connectivity.

5. The cloud routing layer forwards into the destination private subnet.

6. Return traffic should follow a compatible path through stateful security devices to avoid session drops.

9.2 Normal User-to-Data-Center Packet Flow

1. User traffic reaches the distribution layer.

2. The campus core selects a routed path toward the data-center network.

3. The data-center switch/router forwards toward the application subnet.

4. Security inspection is inserted only where required by policy, not arbitrarily at every hop.

10. Design Scenarios

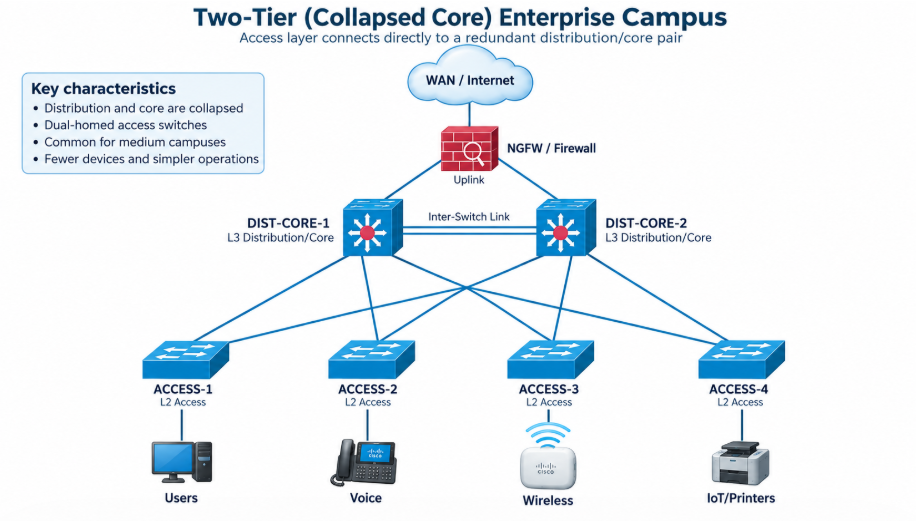

Scenario A — Medium Campus

Requirements: 1,200 users, two buildings, one Internet edge, moderate internal application traffic, and planned growth to 1,800 users.

Scenario B — Large Multi-Building Campus

Requirements: 8,000 users, six buildings, independent maintenance windows, multiple data-center/WAN connections, and strict fault containment.

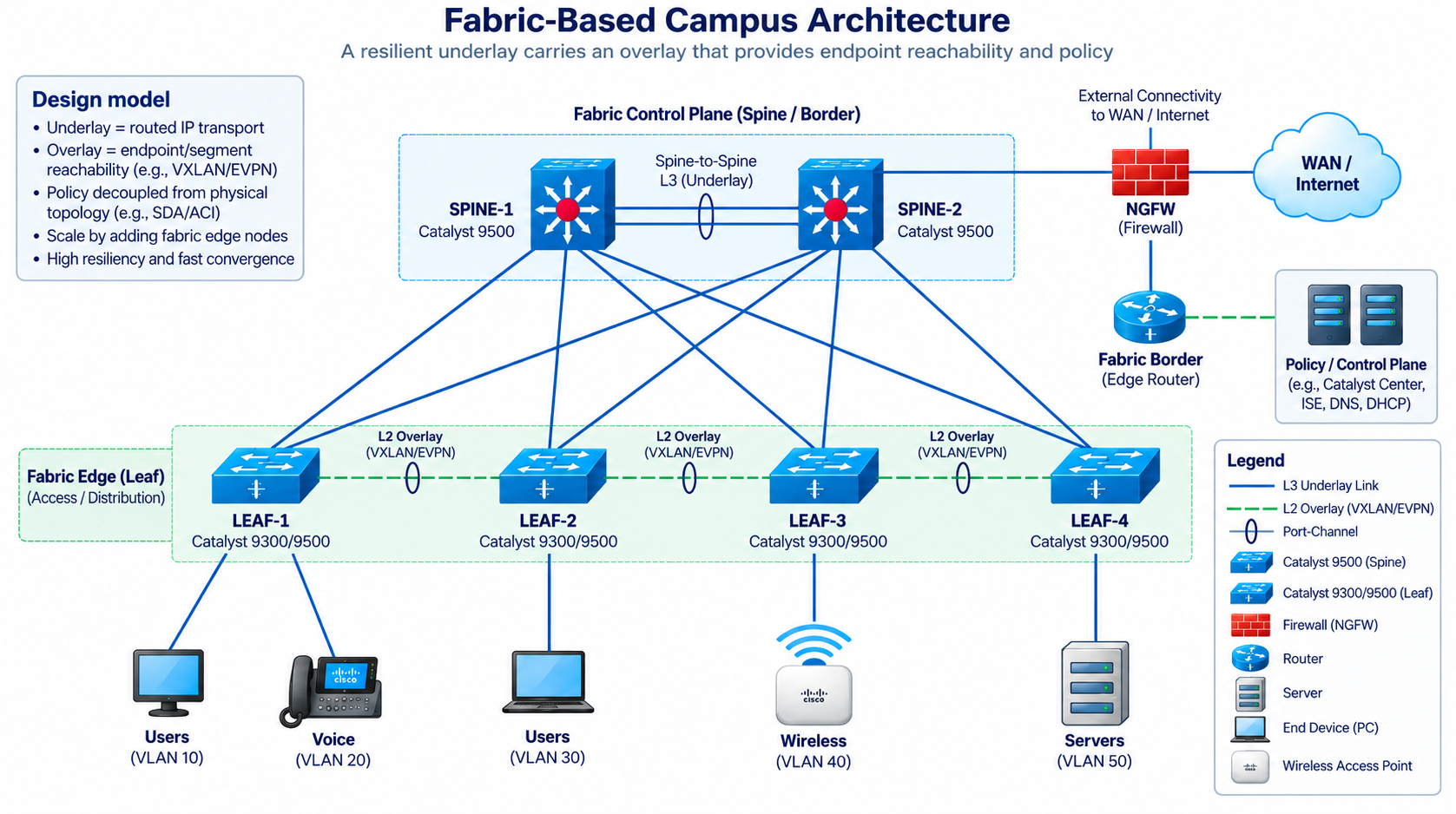

Scenario C — Policy-Driven Digital Campus

Requirements: frequent endpoint mobility, many device types, consistent segmentation, rapid provisioning, and centralized policy.

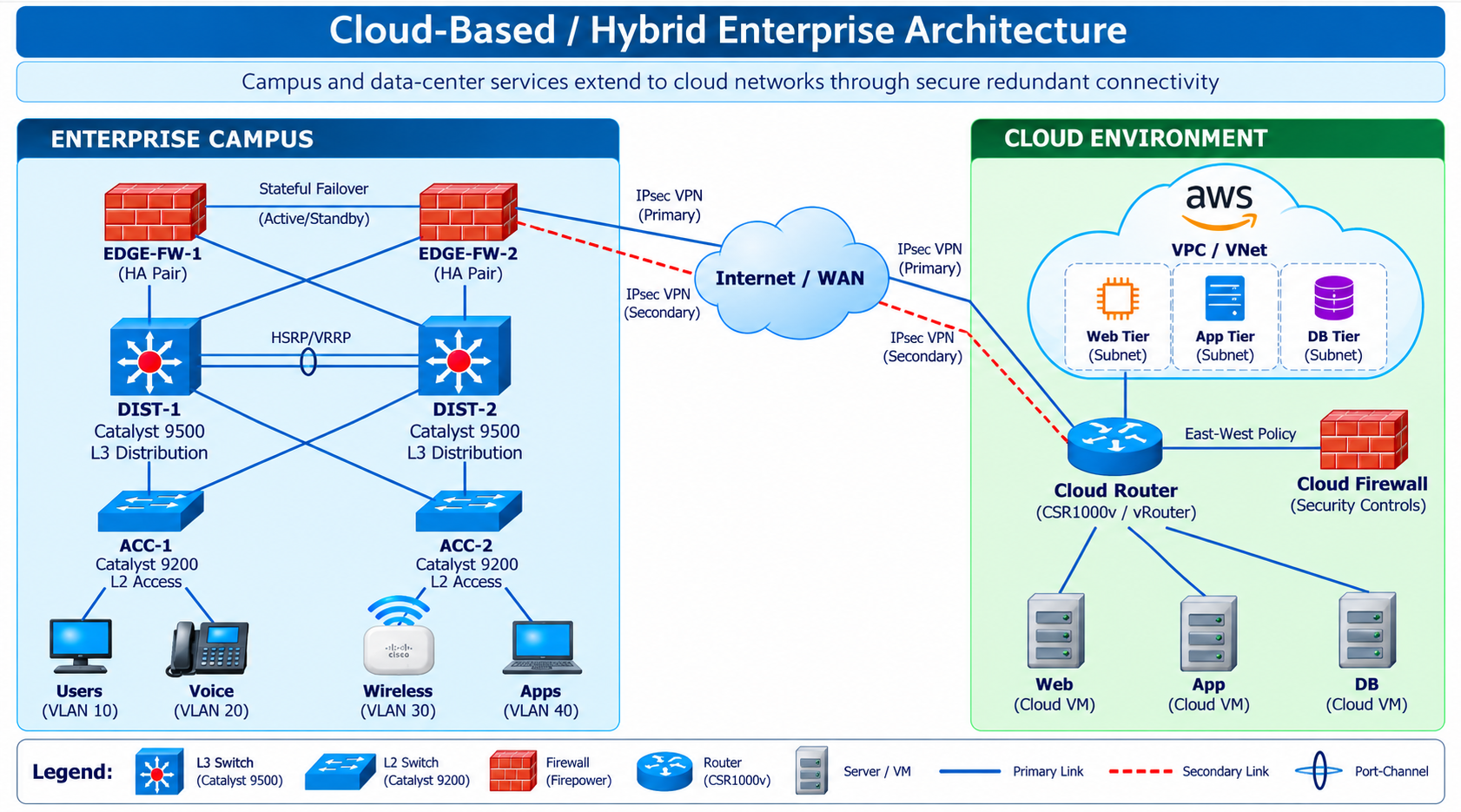

Scenario D — Hybrid Application Environment

Requirements: users remain on campus, customer applications span an on-premises data center and public cloud, and critical workloads require resilient connectivity.

11. Design Validation and Troubleshooting Approach

Architecture questions often appear theoretical, but a CCNP engineer should be able to validate whether the deployed network behaves as the design intended. The exact commands depend on platform and architecture; the examples below illustrate the categories of evidence to collect.

12. Common Design Mistakes

13. Guided Design Labs for visual check
