2.4 Wireless Architectures, AP Modes, Infrastructure, and Management Access

Lesson Overview

Enterprise WLANs can be deployed as standalone, controller-based, or cloud-managed systems. In controller-based designs, lightweight APs use CAPWAP to communicate with a wireless LAN controller (WLC), while the wired infrastructure provides power, VLAN connectivity, management reachability, and upstream transport. The AP operating mode determines how the AP serves clients, forwards traffic, monitors RF conditions, or participates in mesh and troubleshooting functions. This lesson connects the wireless architecture to the physical switch-port and WLC connections that make the WLAN operational.

Learning Objectives

After completing this module, you should be able to explain both the logical wireless architecture and the physical Ethernet infrastructure that supports it.

Compare autonomous AP designs with controller-based Cisco wireless architectures.

• Explain the roles of lightweight APs, wireless LAN controllers (WLCs), CAPWAP, access switches, and Layer 3 infrastructure.
• Describe common Cisco AP modes: Local, FlexConnect, Monitor, Sniffer, Bridge/Mesh, Rogue Detector, and SE-Connect (platform support varies).
• Explain centralized switching versus FlexConnect local switching.
• Describe how APs physically connect to switches using access ports or trunks depending on design.
• Describe how WLCs connect to the wired network using 802.1Q trunks and link aggregation / port-channels.
• Explain AP management VLANs, wireless client VLANs, PoE, CAPWAP control/data paths, and SSID-to-VLAN mapping.
• Configure and verify representative Cisco switch ports for APs and WLC uplinks.
• Troubleshoot common WLAN infrastructure faults such as wrong VLANs, missing trunk VLANs, PoE failure, CAPWAP reachability, and EtherChannel mismatch.
• What the exam is really testing

These objectives are primarily architecture and interpretation objectives. You should be able to look at a topology or GUI, identify the role of each component, understand which links are physical Ethernet links versus logical CAPWAP tunnels, and determine whether a switch port should be access, trunk, or part of a LAG.

1. Cisco Wireless Architecture Fundamentals

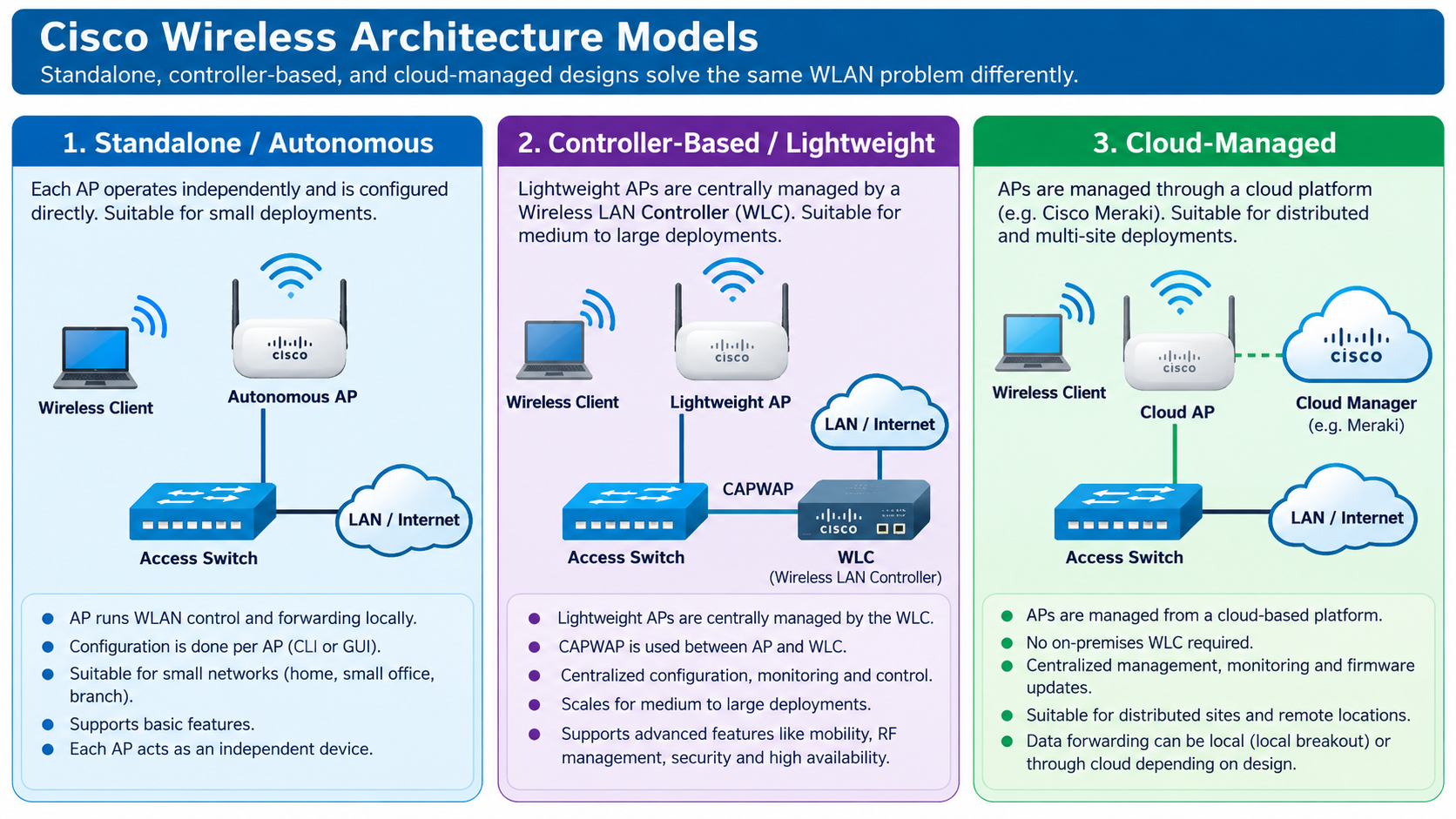

Figure 1 - Three common wireless deployment models at a CCNA level.

A wireless LAN extends the Ethernet LAN over radio. The WLAN still depends on the wired infrastructure for power, management connectivity, VLAN transport, DHCP/DNS, default-gateway reachability, security services, and access to applications or the Internet. The architecture determines where AP configuration, radio coordination, security policy, and client data forwarding occur.

1.1 Control, Management, and Data Planes

• Control plane: signaling used to establish and maintain wireless operation - AP/WLC control messages, radio policy, roaming coordination, and topology state.

• Management plane: configuration, monitoring, software management, logging, telemetry, administrator access, and platform health.

• Data plane: actual user traffic from wireless clients toward LAN, data center, cloud, or Internet destinations.

• Where these functions run differs by architecture. An autonomous AP keeps more functions locally; a controller-based design centralizes many control and management functions.

2. Standalone / Autonomous AP Architecture

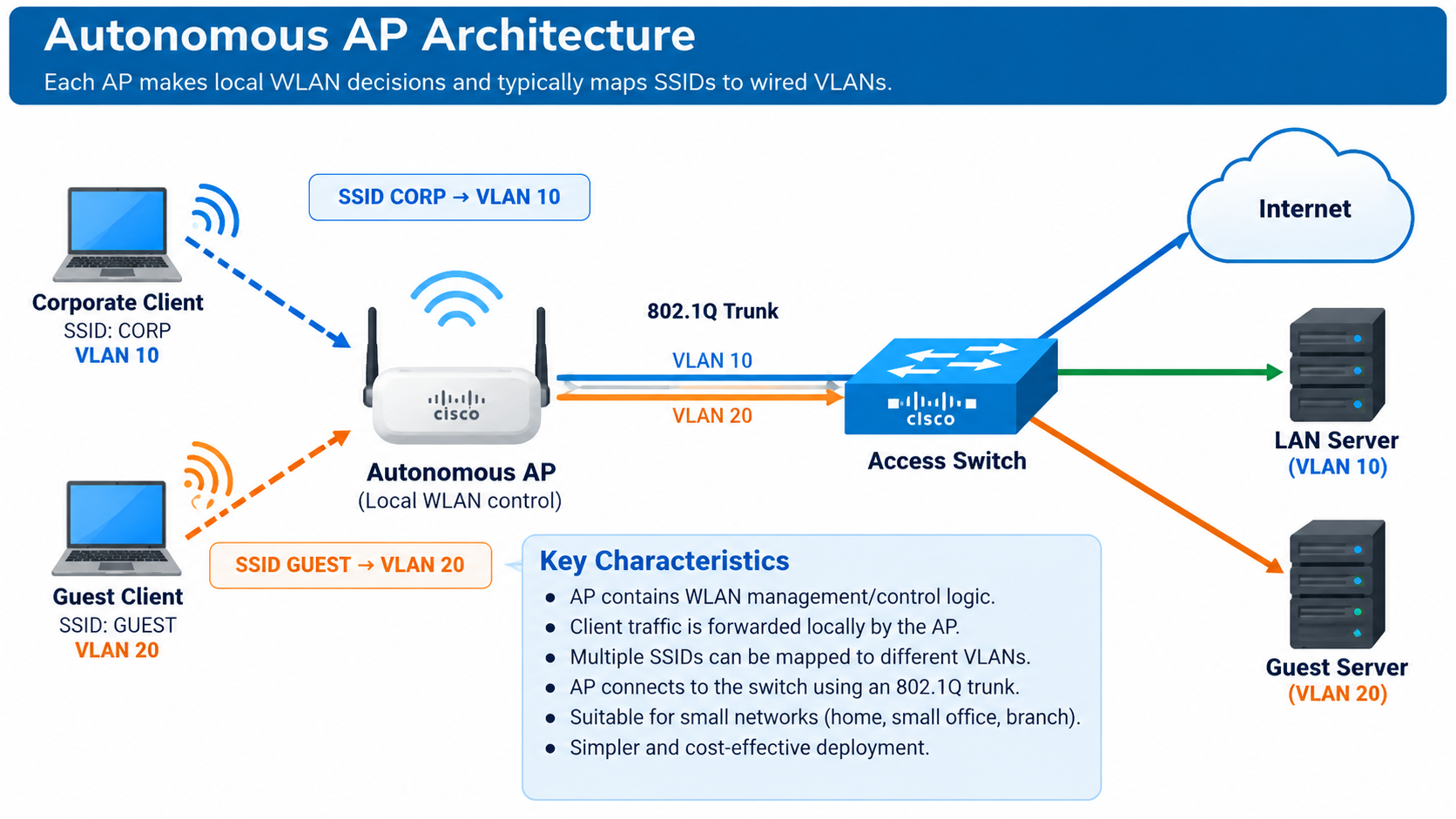

Figure 2 - Autonomous APs locally control WLAN behavior and forward traffic into the wired LAN.

An autonomous AP operates as a largely self-contained wireless device. It can advertise SSIDs, enforce WLAN security, bridge client traffic to wired VLANs, and be configured directly. This design is simple for very small sites but becomes harder to operate consistently as the AP count grows.

2.1 SSID-to-VLAN Mapping

When an autonomous AP serves several SSIDs that map to different wired VLANs, the AP-to-switch uplink may need to operate as an…
