LESSON PURPOSE Build a practical understanding of Wi-Fi RF behavior, channel and band selection, wireless security and interference, then connect those concepts to server virtualization, virtual machines, containers, virtual switching, and VRFs. |
Lesson Overview
Modern enterprise networks connect both wired and wireless endpoints while increasingly hosting applications on virtual infrastructure. A CCNA-level engineer should understand how radio-frequency behavior affects Wi-Fi performance and how virtualization separates applications, operating systems, and routing domains on shared physical infrastructure.
Learning Objectives
• Describe the purpose and function of a wireless LAN (WLAN), access point (AP), SSID, BSSID, and wireless controller.
• Explain RF characteristics including frequency, wavelength, attenuation, signal strength, SNR, reflection, absorption, and multipath.
• Compare 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi operation at a practical level.
• Explain channel selection, channel width, non-overlapping channels, co-channel contention, and adjacent-channel interference.
• Describe common wireless security protocols and the difference between Personal/PSK and Enterprise/802.1X access.
• Troubleshoot common wireless client problems such as wrong SSID, weak signal, interference, authentication failure, and DHCP failure.
• Explain the role of hypervisors, virtual machines, containers, virtual NICs, and virtual switches.
• Describe VRF operation and how multiple routing tables can exist on one physical router or Layer 3 device.
• Use basic Cisco IOS verification commands for VRF and common client-side commands for wireless troubleshooting.
CCNA ALIGNMENT |
1. Wireless Principles
1.1. Why Wireless Networking?
A WLAN allows endpoints to connect without a physical Ethernet cable by using radio-frequency (RF) signals. Wireless provides mobility and flexible deployment, but the transmission medium is shared and affected by distance, obstacles, interference, channel reuse, and client capabilities.
• Mobility for laptops, phones, tablets, scanners, and IoT devices.
• Faster endpoint deployment where cabling is difficult or expensive.
• Roaming across multiple AP coverage areas.
• Shared-medium behavior requires careful RF planning and security.

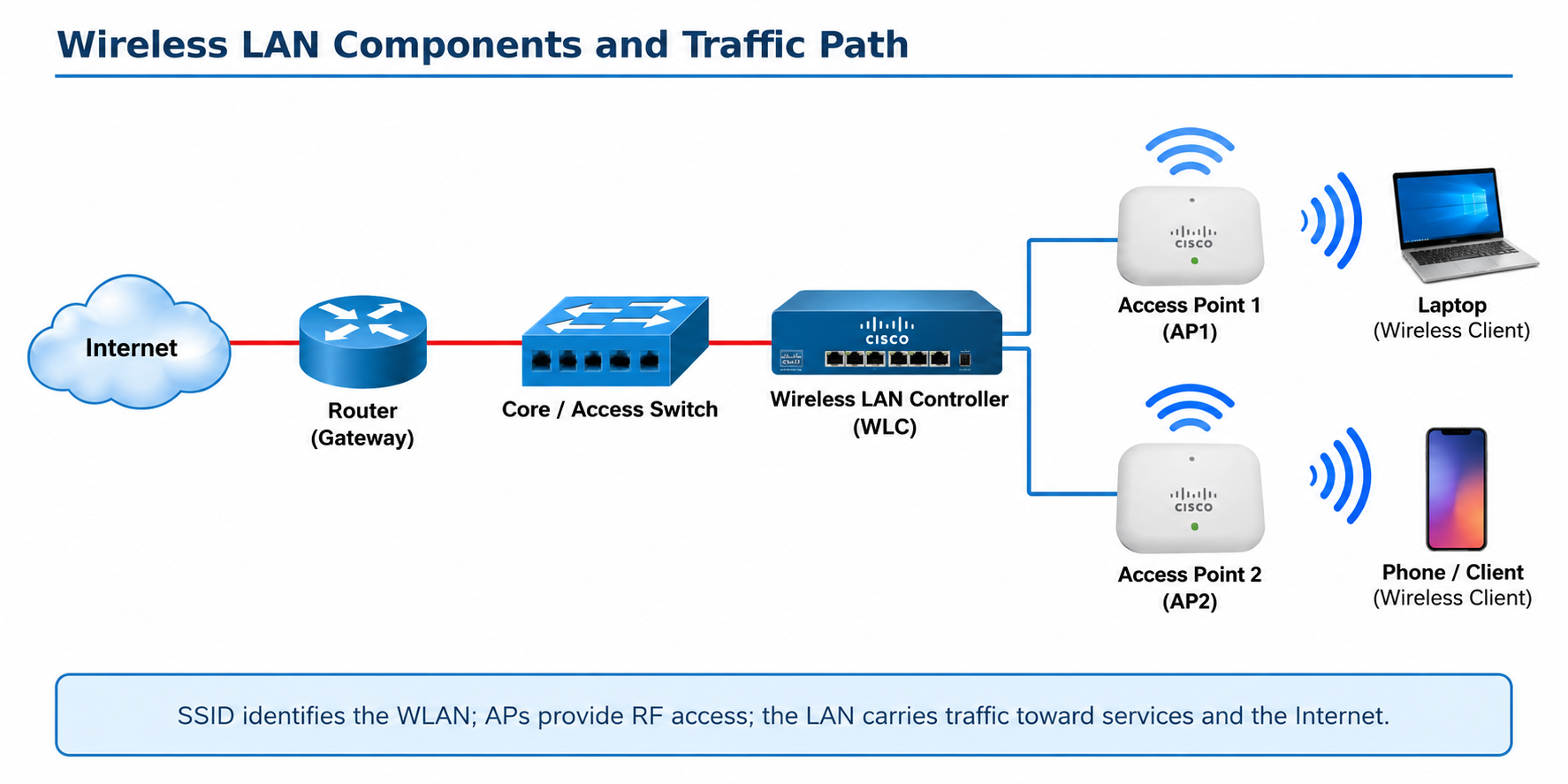

1.2 Core Wireless Components
Component | Purpose | CCNA-Level Meaning |
Wireless Client / STA | Endpoint with a Wi-Fi radio | Laptop, phone, tablet, scanner, IoT device |
Access Point (AP) | Bridges wireless clients into the wired LAN | Provides RF coverage and advertises WLANs |
SSID | Human-readable WLAN name | Example: CORP-WIFI or GUEST-WIFI |
BSSID | MAC identifier for a specific AP radio/BSS | Clients distinguish individual AP radios using BSSID |
WLC | Centralizes AP/WLAN control in controller-based designs | Common enterprise architecture |
WLAN | Logical wireless network configuration | Maps SSID/security/policy into the network |
Distribution System | Wired network carrying AP traffic | Usually Ethernet switching infrastructure |
1.2a SSID, BSSID, BSS, and ESS
• SSID identifies the wireless network to users and clients.
• A Basic Service Set (BSS) is the coverage/service area associated with one AP radio and its connected clients.
• The BSSID normally identifies a particular BSS using a MAC address.
• An Extended Service Set (ESS) uses multiple APs with a common SSID so clients can roam across a larger area.
1.3. Radio Frequency (RF) Fundamentals
Wi-Fi uses electromagnetic radio waves. RF behavior determines coverage, data rate, reliability, and interference. The network may be configured perfectly at Layer 2 and Layer 3 but still perform badly if the RF environment is poor.
RF Concept | Meaning | Operational Effect |
Frequency | Number of wave cycles per second, measured in Hz | Wi-Fi commonly operates in GHz bands |
Wavelength | Physical length of one RF cycle | Lower frequencies generally have longer wavelengths |
Amplitude / Power | Strength of the transmitted/received signal | Higher received power usually improves reliability until interference/noise dominates |
Attenuation | Reduction in signal strength | Caused by distance, walls, floors, absorption, and cable/connector loss |
RSSI | Received signal strength indication | Vendor/device-specific representation of received strength |
SNR | Signal-to-noise ratio | Higher SNR generally allows more reliable/high-rate modulation |
dBm | Absolute RF power referenced to 1 mW | Common way to express transmit/receive power |
dBi | Antenna gain relative to an isotropic radiator | Describes directional gain, not transmitter power |
1.3a Understanding dBm
dBm values are logarithmic. Wi-Fi receive power is commonly shown as a negative number. A value closer to 0 dBm represents a stronger signal.
Example concept: |
IMPORTANT |
1.3b RF Propagation Effects
• Reflection — RF bounces from surfaces such as metal, glass, or concrete.
• Absorption — materials reduce RF energy; dense walls, water, and people can weaken signals.
• Refraction — RF changes direction when moving through materials with different properties.
• Diffraction — RF bends around edges and obstacles.
• Scattering — irregular surfaces spread RF in many directions.
• Multipath — multiple copies of the same signal arrive at slightly different times after taking different paths.

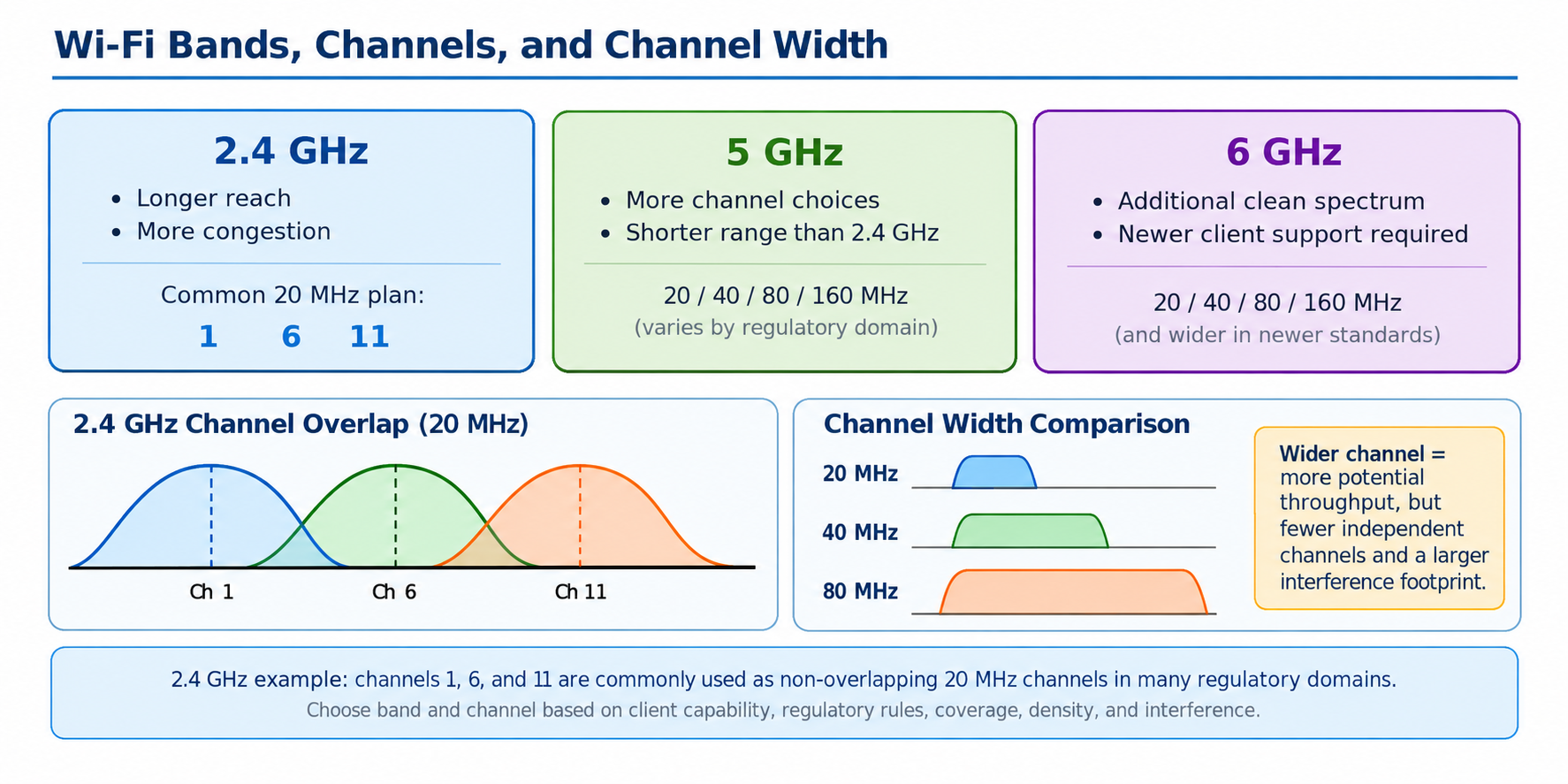

1.4. Wi-Fi Bands and Channel Selection
Band | Practical Characteristics | Typical Planning Considerations |
2.4 GHz | Longer propagation, fewer independent channels, heavy legacy/device use | Coverage is easier, but congestion/interference is common |
5 GHz | More channel choices and generally higher capacity | Good enterprise default where clients support it; range is typically shorter than 2.4 GHz |
6 GHz | Additional spectrum for newer Wi-Fi generations | Requires compatible clients/APs and is subject to regulatory rules; useful for high-density modern designs |
1.4a Non-Overlapping Channels in 2.4 GHz
With 20 MHz channel operation, channels 1, 6, and 11 are commonly used as a non-overlapping plan in regulatory domains where those channels are available. The exact permitted channels and transmit-power rules depend on the country/regulatory domain.
Example 2.4 GHz channel reuse: |
1.4b Channel Width
Width | Benefit | Tradeoff |
20 MHz | More independent channels; better reuse in dense environments | Lower maximum PHY rate than wider channels |
40 MHz | Higher potential throughput | Consumes twice the spectrum of 20 MHz |
80 MHz | High throughput for capable clients | Fewer independent channels; larger interference footprint |
160 MHz | Very high PHY rate where supported | Harder to reuse in dense environments; client/regulatory support varies |
1.4c Band and Channel Selection Principles
1. Confirm the regulatory domain and permitted channels.
2. Identify client capabilities and required bands.
3. Prefer a channel plan that minimizes adjacent-channel overlap.
4. Consider density: many clients often benefit from more cells/channels instead of simply increasing transmit power.
5. Use appropriate channel widths; wider is not automatically better.
6. Measure interference and channel utilization rather than relying only on signal strength.
7. Plan channel reuse so nearby APs do not unnecessarily contend on the same channel.
1.5. Shared-Medium Operation and CSMA/CA
Wi-Fi is a shared medium. A client does not transmit simply because it has data. It first listens to determine whether the channel appears busy. 802.11 uses collision-avoidance behavior rather than Ethernet-style collision detection.
• Carrier Sense — listen before transmitting.
• Random backoff — stations wait different periods to reduce simultaneous transmissions.
• Acknowledgments — many unicast frames are acknowledged at Layer 2.
• Retransmission — missing acknowledgments can cause frames to be transmitted again.
• More active clients on the same channel means more airtime contention.
CCNA EXAM POINT |
1.5. Wireless Association Process
1. Discovery / Scanning — the client learns available WLANs through beacon/probe behavior.
2. Select SSID/BSSID — the client chooses the WLAN and an AP radio.
3. 802.11 authentication / security exchange — depends on the configured security method.
4. Association — the client joins the BSS.
5. Encryption/key establishment — occurs for secured WLANs.
6. IP configuration — the client normally obtains IPv4/IPv6 settings, often using DHCP/SLAAC as appropriate.
7. Application traffic — the client communicates through the AP into the wired network.

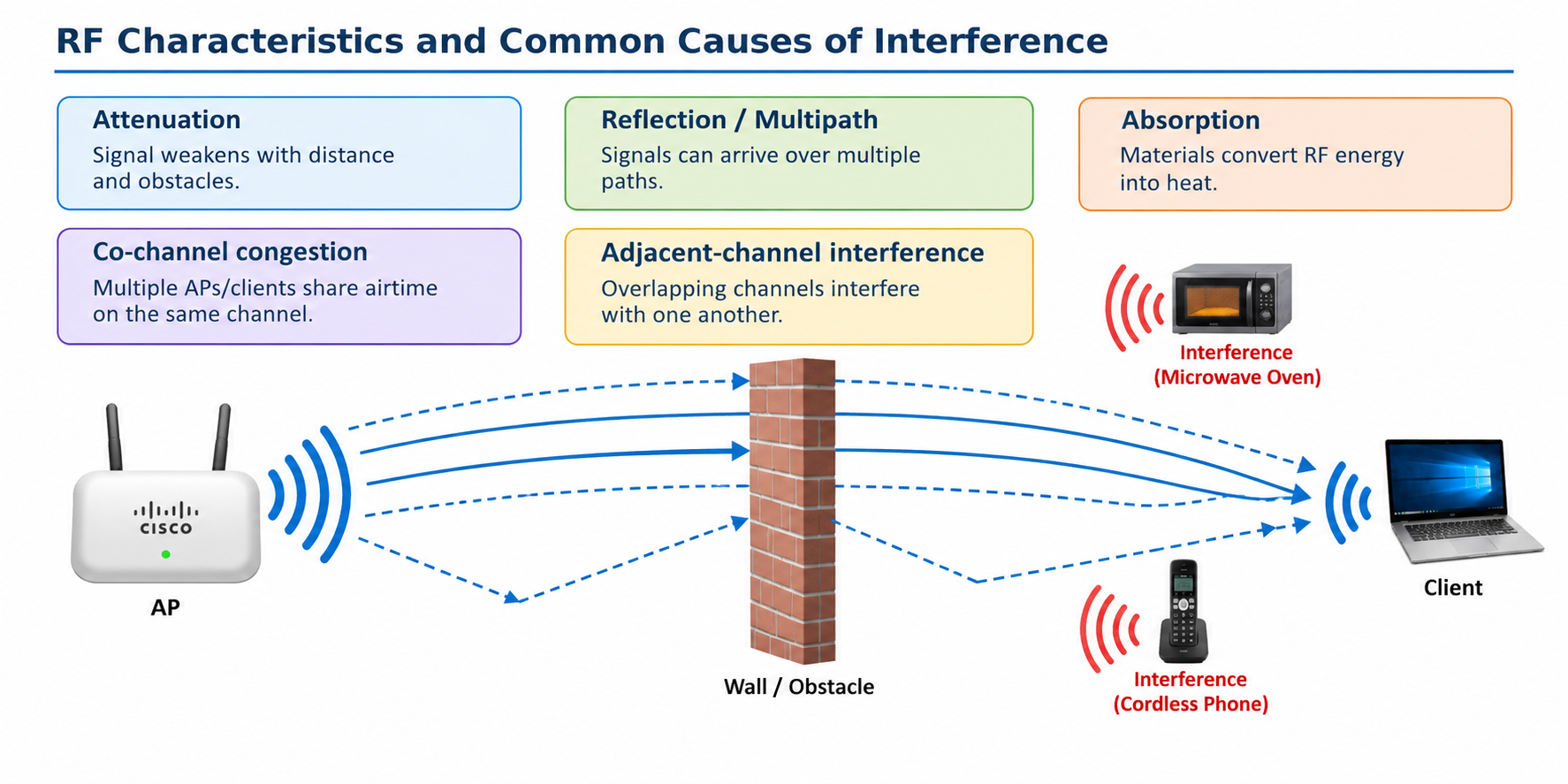

1.6. Causes of Wireless Interference
Cause | Example | Likely Effect |
Co-channel contention | Several nearby APs use the same channel | More airtime competition; reduced throughput |
Adjacent-channel interference | Overlapping channel assignments | Frames interfere instead of coordinating cleanly |
Non-Wi-Fi interference | Microwave ovens, Bluetooth, cameras, industrial RF | Noise, retries, reduced rate, disconnects |
Physical obstacles | Concrete, metal, elevator shafts, dense shelving | Attenuation and coverage holes |
Hidden-node problem | Clients can hear the AP but not one another | Increased contention/retries |
Excessive transmit power | Large cells overlap too much | Sticky clients and poor channel reuse |
High client density | Many stations share one AP/channel | Airtime saturation even with strong signal |
1.7 Wireless Security Protocols
Protocol / Method | Status | Key Point |
Open | No link-layer authentication/encryption by itself | Suitable only when risk is accepted or higher-layer controls are deliberately used |
WEP | Obsolete / insecure | Do not deploy |
WPA | Legacy | Introduced transitional improvements; TKIP is legacy |
WPA2 | Widely deployed | Commonly uses AES-CCMP |
WPA3 | Modern generation | Improves authentication/security behavior; client support required |
Personal / PSK | Shared passphrase | Simple for small environments; shared secret must be protected |
Enterprise / 802.1X | Per-user/device authentication via AAA/RADIUS | Preferred for managed enterprise access where supported |
1.7a PSK vs Enterprise Authentication
Area | Personal / PSK | Enterprise / 802.1X |
Credential | Shared passphrase | Individual/user/device credentials or certificates |
AAA Server | Not required for basic PSK | Typically RADIUS/AAA |
Scale | Small/home/simple deployments | Enterprise environments |
Credential Revocation | Change shared secret for everyone | Disable one identity without changing every user |
Operational Control | Limited identity granularity | Central policy and accounting options |
1.8 Wireless Troubleshooting Workflow
1. Confirm the wireless adapter/radio is enabled.
2. Verify the expected SSID is visible and selected.
3. Check signal strength, SNR, channel utilization, and interference.
4. Verify the security method, passphrase, certificates, or 802.1X credentials.
5. Confirm association completes successfully.
6. Verify IP address, subnet mask/prefix, default gateway, and DNS.
7. Ping the default gateway to separate Wi-Fi/IP issues from upstream routing problems.
8. Check DHCP if the client has no valid address or self-assigned/link-local addressing.
9. Roam/test with another AP location to isolate coverage issues.
10. Compare with another known-good client to separate infrastructure problems from a client-specific problem.
1.8a Useful Client-Side Commands
Platform | Command | Purpose |
Windows | netsh wlan show interfaces | SSID, BSSID, radio type, channel, signal |
Windows | netsh wlan show networks mode=bssid | Discover nearby WLAN/BSSID information |
Windows | ipconfig /all | IP, gateway, DNS, DHCP information |
Windows | ping <gateway> | Basic Layer 3 reachability |
Linux | nmcli device wifi list | Nearby WLANs, signal, channel, security |
Linux | ip address / ip route | IP addressing and routing |
Linux | ping <gateway> | Basic reachability |
macOS | networksetup -getairportnetwork en0 | Current Wi-Fi network on many systems/interfaces |
macOS | ifconfig / route -n get default | Addressing and default-route information |
1.8b Troubleshooting Example — Connected to Wi-Fi but No Internet
Client status: |
Interpretation: The client associated to Wi-Fi, but it did not receive a normal IPv4 configuration. Investigate DHCP reachability, WLAN-to-VLAN mapping, DHCP relay/server configuration, or client DHCP behavior before troubleshooting DNS or Internet routing.
2. Virtualization Fundamentals
2.1 Why Virtualization?
Virtualization abstracts logical computing or networking resources from the underlying physical hardware. Instead of dedicating one physical server to one application, multiple isolated workloads can share the same host. Network virtualization applies the same idea to switching and routing constructs.
• Higher hardware utilization.
• Faster deployment and recovery.
• Isolation between workloads.
• Simplified testing and lab environments.
• Flexible resource allocation.
• Supports modern cloud and data-center designs.

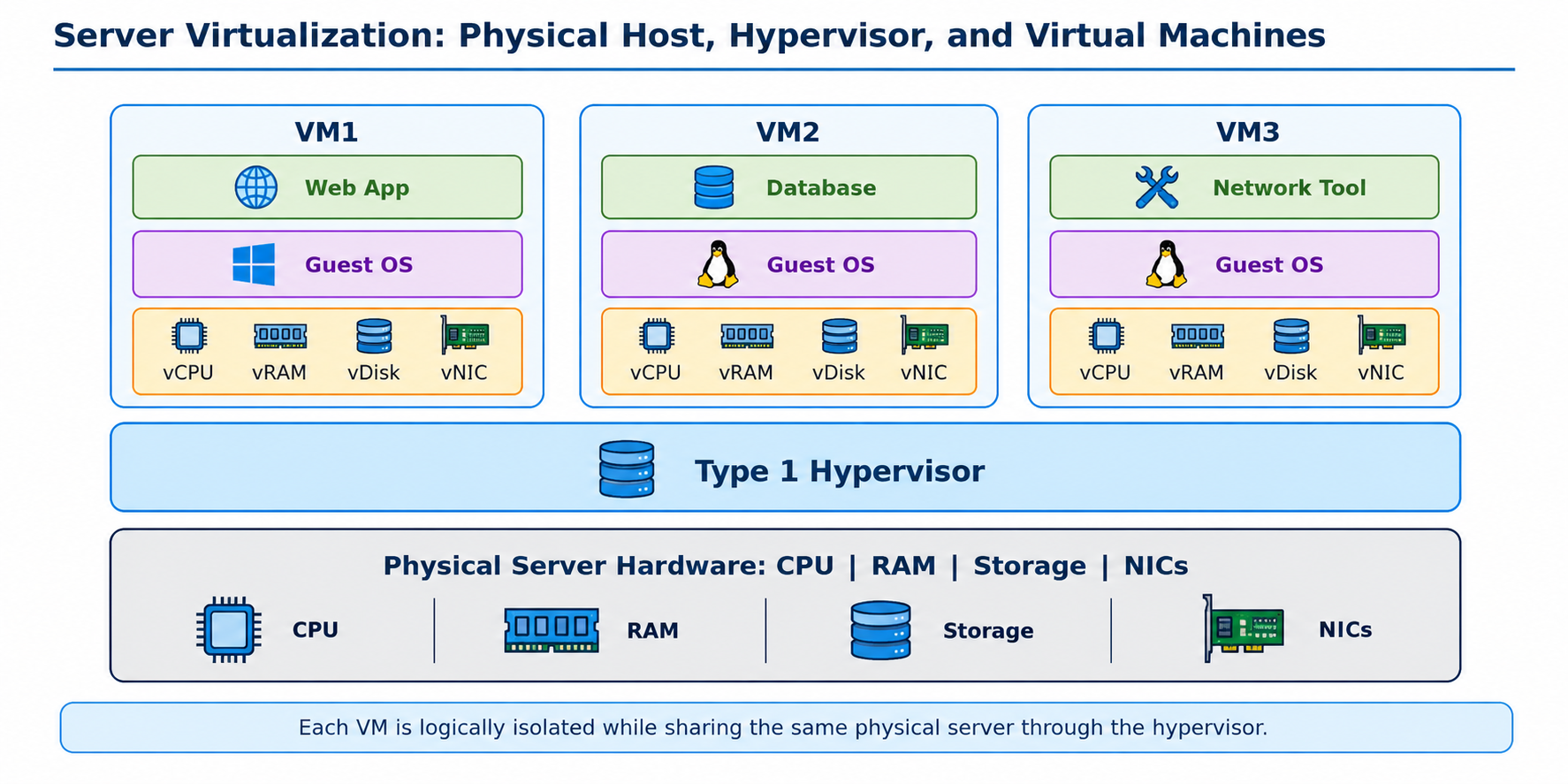

2.2. Hypervisors and Virtual Machines
A hypervisor creates and manages virtual machines (VMs). Each VM behaves like an independent computer with virtual CPU, memory, disk, and network interfaces.
Item | Role |
Physical Host | Real server hardware providing CPU, RAM, storage, and physical NICs |
Hypervisor | Allocates hardware resources and isolates VMs |
Virtual Machine | Logical computer running its own guest operating system |
vCPU | Virtualized processor resources presented to the VM |
vRAM | Virtual memory allocated to the VM |
vDisk | Virtual storage device/file/block volume |
vNIC | Virtual network interface presented to the VM |
Virtual Switch | Software switch connecting vNICs to each other and/or physical uplinks |
2.2a Type 1 vs Type 2 Hypervisors
Type | Where It Runs | Typical Use |
Type 1 (bare metal) | Directly on server hardware | Enterprise/data center production virtualization |
Type 2 (hosted) | As an application on a host operating system | Desktop labs, testing, development |
2.3 Virtual Switching
A virtual switch performs Layer 2 forwarding in software. VM vNICs connect to virtual switch ports. The virtual switch can also connect to one or more physical NICs so VM traffic can reach the physical LAN.
VM1 vNIC -----\ |
• Traffic between VMs on the same host may remain inside the server and never reach the physical switch.
• A physical switch may see the MAC addresses of multiple VMs behind one physical server uplink.
• VLAN tagging and trunking can extend logical segmentation between virtual and physical switches.

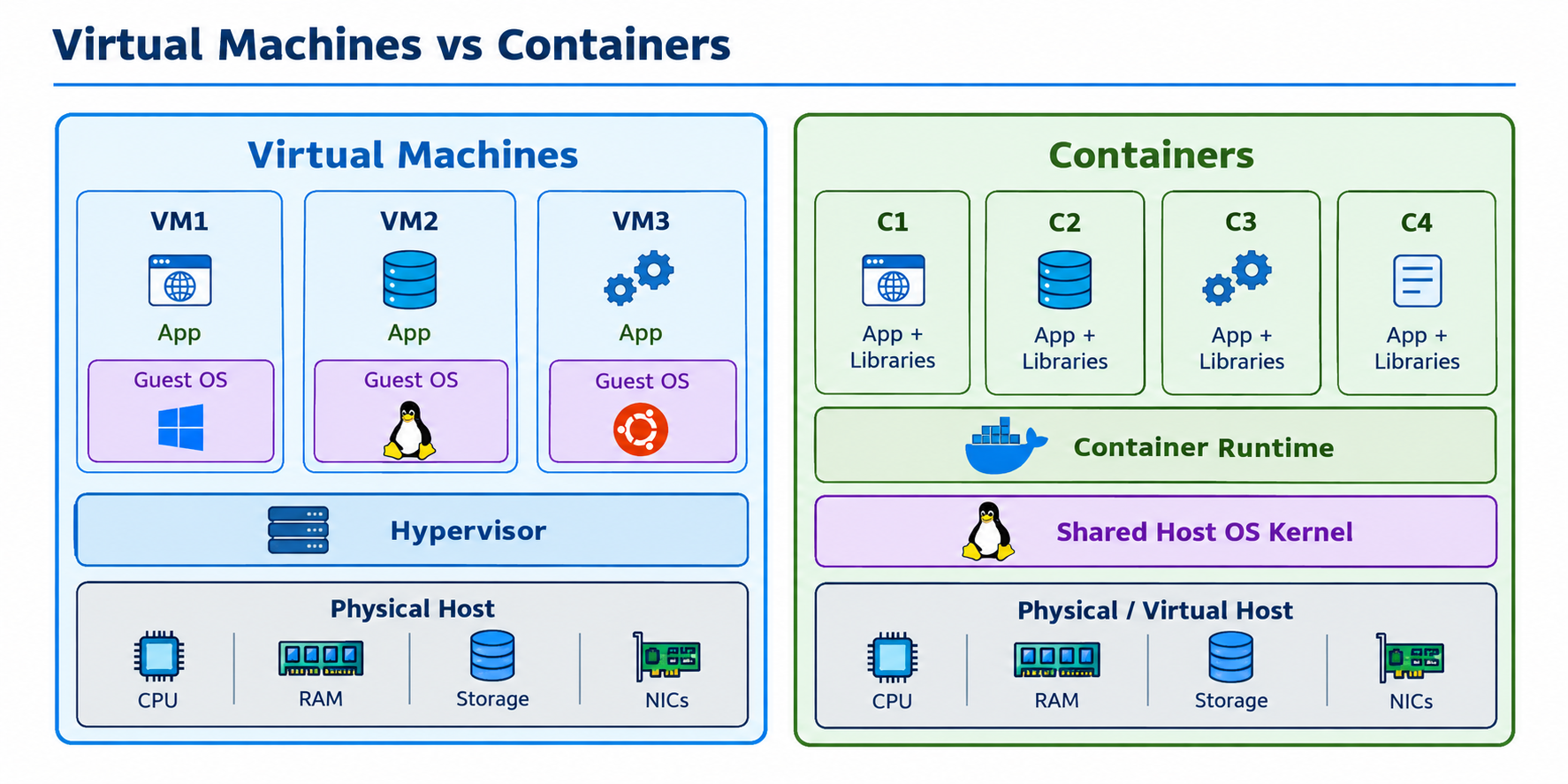

2.4. Containers
Containers package an application and its required user-space dependencies while sharing the host operating system kernel. This makes containers generally lighter-weight than full VMs.
Characteristic | Virtual Machine | Container |
Operating System | Each VM normally has its own guest OS | Containers share the host kernel |
Startup | Usually slower than a container | Usually fast |
Resource Overhead | Higher | Lower |
Isolation Boundary | VM/hypervisor boundary | Process/container isolation on shared kernel |
Portability | VM image across compatible hypervisors | Container image across compatible runtimes |
Typical Use | Full OS workloads, legacy apps, strong VM isolation | Microservices, CI/CD, scalable application components |

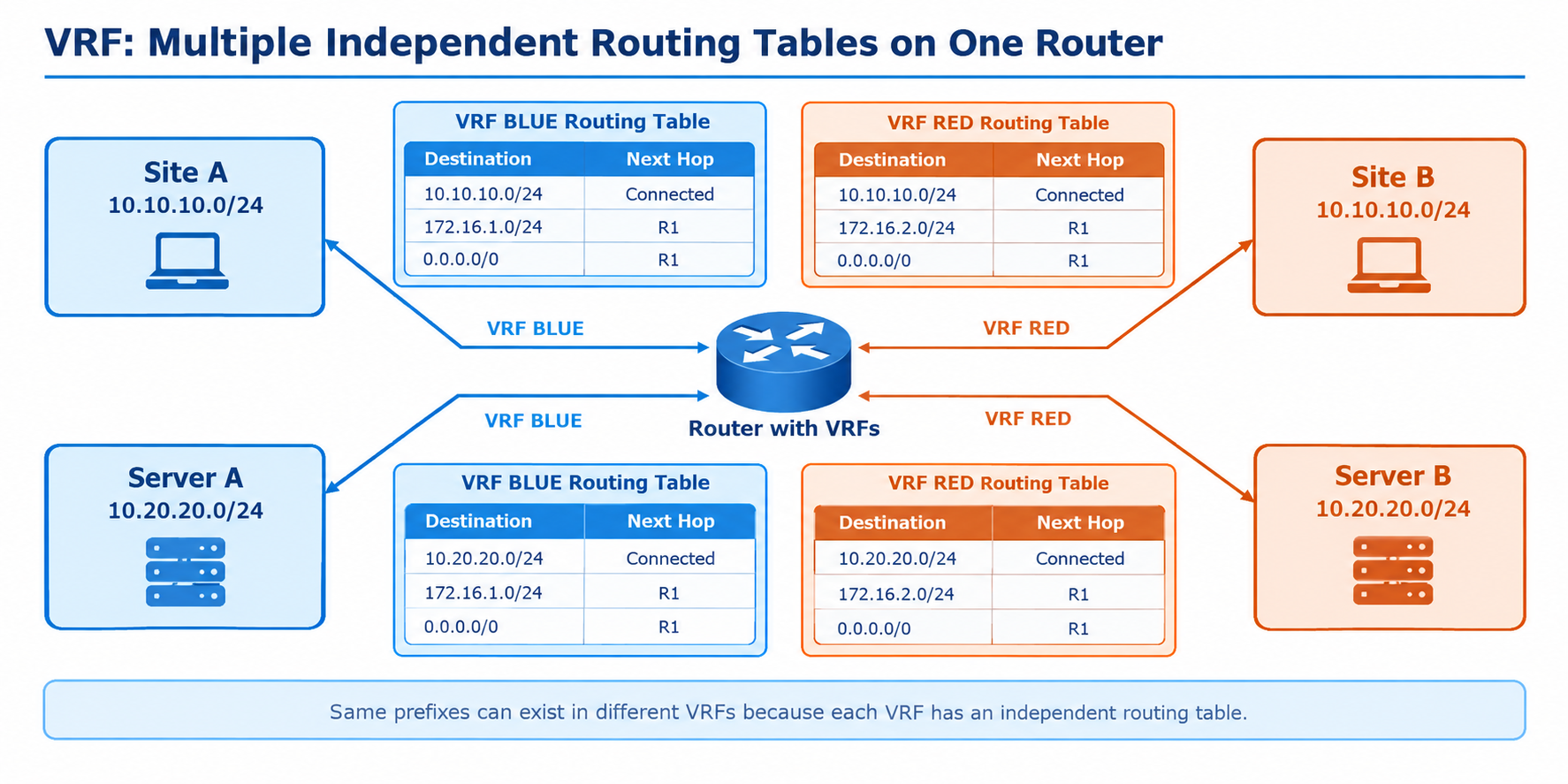

2.5 VRF — Virtual Routing and Forwarding
VRF allows one physical Layer 3 device to maintain multiple independent routing tables. Interfaces assigned to different VRFs are logically separated even though they exist on the same router or multilayer switch.
2.5a Why Use VRFs?
• Separate customers, departments, tenants, or security zones.
• Allow overlapping IP address ranges in different routing domains.
• Reduce the need for separate physical routers for every isolated routing table.
• Support service-provider, enterprise, managed-services, lab, and multi-tenant designs.
2.5b Global Routing Table vs VRF
Area | Global Routing Table | VRF |
Scope | Default routing context | Named independent routing context |
Routes | Global RIB/FIB | Separate route table per VRF |
Interface Membership | Normal/default interfaces | Interfaces assigned to that VRF |
Overlapping IPs | Cannot normally duplicate connected prefixes in same table | Same prefix can exist in different VRFs |
Traffic Between Contexts | Normal routing | Requires route leaking or an external path/policy |
2.5c Cisco IOS VRF Configuration Example
Example: create VRF BLUE and place GigabitEthernet0/0 into it.
R1(config)# vrf definition BLUE |
CONFIGURATION NOTE |
2.5d VRF Verification Commands
R1# show vrf |
2.5e Example VRF Output
R1# show vrf |
2.6 Virtualization Troubleshooting Concepts
Symptom | Likely Area to Check |
VM cannot reach network | vNIC state, virtual switch/port group, VLAN, physical NIC/uplink |
One VM works, another fails | Guest IP settings, vNIC attachment, security/policy, VM firewall |
All VMs on host lose network | Physical NIC/uplink, vSwitch, host networking, upstream switch |
Container cannot reach service | Container network/bridge, host routing/firewall, service port |
VRF route missing | Interface VRF membership, route installation, routing protocol/static route in correct VRF |
VRF ping fails | Use ping vrf; verify source/interface/route exists in that VRF |
Overlapping networks unexpectedly communicate | Check route leaking, firewall policy, incorrect VRF assignment |
2.7. Wireless vs Virtualization — How They Fit Together

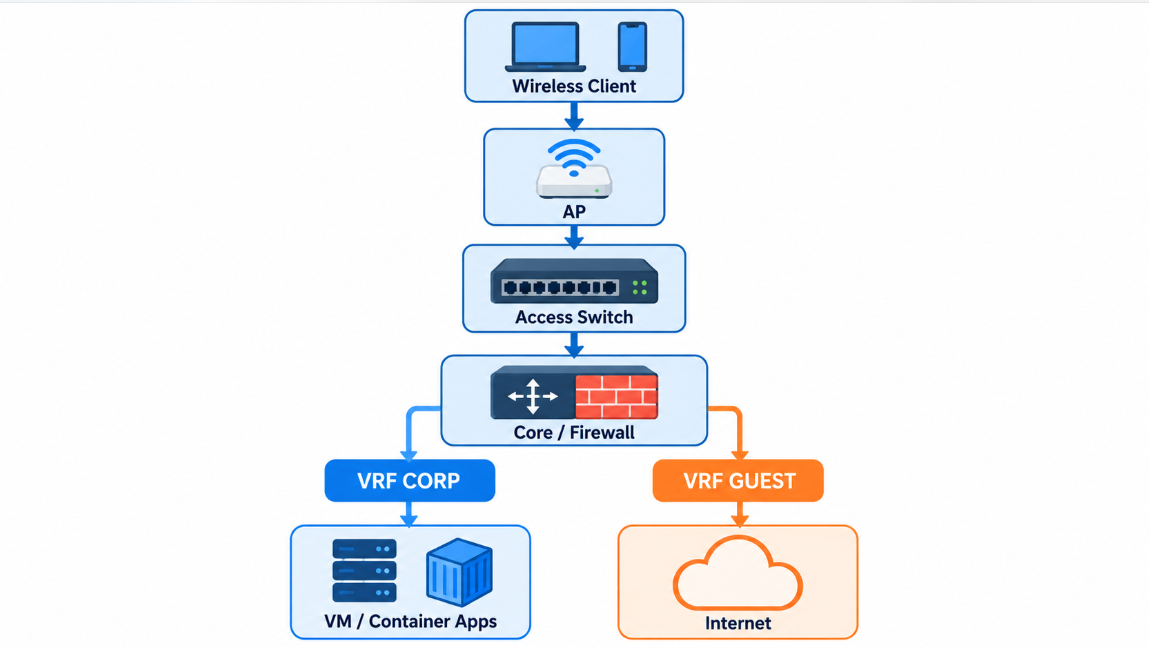

Wireless and virtualization often meet in real enterprise designs. Wireless clients connect through APs and switches to applications that may be hosted on VMs or containers. VRFs, VLANs, firewalls, and policy can then keep guest, corporate, IoT, and management traffic separated.
|
Exam And Operation Tips • Do not equate strong signal with good performance; check SNR, interference, retries, channel utilization, and congestion. • For 2.4 GHz 20 MHz planning, 1/6/11 is the classic non-overlapping model in many regulatory domains. • A wider channel can increase potential throughput but consumes more spectrum and can reduce channel reuse. • Personal/PSK uses a shared secret; Enterprise security uses centralized identity/AAA such as 802.1X with RADIUS. • If Wi-Fi association works but the client has 169.254.x.x, investigate DHCP/IP configuration rather than RF first. • Virtual switches provide software-based Layer 2 connectivity for vNICs. • VRFs create separate routing tables; overlapping IP prefixes can exist in different VRFs. • Always run route/ping verification in the correct VRF context. |
Quick knowledge check
1. What is the role of an access point in a WLAN?
Answer: It provides RF access for wireless clients and bridges their traffic into the network.
2. What is the difference between an SSID and a BSSID?
Answer: SSID is the WLAN name; BSSID identifies a specific BSS/AP radio, normally using a MAC address.
3. What is the primary difference between a VM and a container?
Answer: A VM normally includes a full guest OS, while a container shares the host OS kernel and packages the application/user-space dependencies.
4. What is the purpose of a VRF?
Answer: It creates an independent routing table/routing context on the same physical Layer 3 device.
